Billy Goat

Hurricane™ Zero Turn Stand on Blower

Product #:BLG-59-1083

Mfg. Part #:X3002

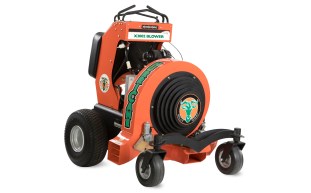

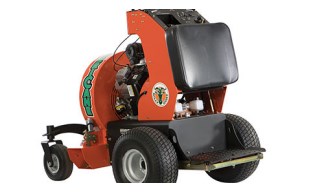

Billy Goat X3002 Hurricane™ Zero Turn Stand on Blower

Billy Goat

Hurricane™ Zero Turn Stand on Blower

Product #:BLG-59-1083

Mfg. Part #:X3002

EA

Description

Ideal for medium size maintenance contractors, landscapers, seal coaters, schools, parks departments, cemeteries, resorts, street departments golf courses and estate properties, the Hurricane X3001 takes clean-up productivity to a whole new level. From seamless operating controls to directional blowing options, robust blowing power and zero-turn maneuverability, the Hurricane X3001 accelerates the clean-up task so more jobs can be completed faster and with less wear on the operator.

Feature Bullets

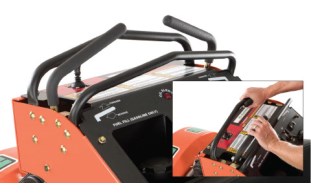

  • Patented Quad Control Handle System™: Offers seamless forward/reverse direction, automatic return to neutral, integrated operator presence control and a self-activating parking brake. Intuitive controls for ease of operation.

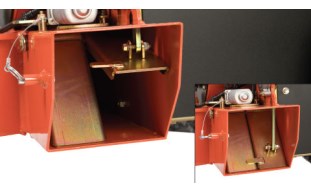

  • Patented Dual Deflector Air Flow System™: Allows the operator to change the angle of the air flow for deeper, more efficient cleaning of leaves and debris. Air flow can be shut down on all three discharges for transport.

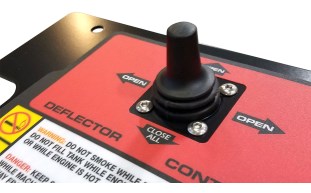

  • Joystick Deflector Control: With an improved mounting bezel that allows for quick and easy control of air flow from left, right or forward directions. Eliminating the need to blow in reverse. Simply pull back on the lever to close flow for transport.

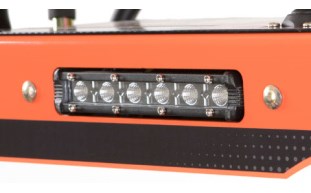

  • LEDd Lights: LED lights for night operation makes for easy clean-up when the seasonal change brings less daylight to complete jobs.

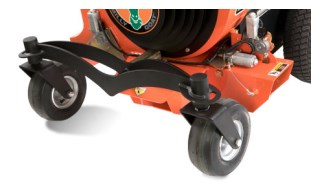

  • Torsion Mounted Front Axle Assembly: Handles curbs with ease; like they’re not even there.
  • Ergonomic Operator Platform & Thigh Pad: Non-skid platform and padded thigh pad offer ease of operation and operator comfort.

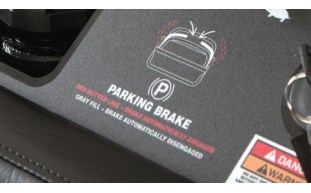

  • Automatic Parking Brake: Self activates if the need to briefly step off the machine arises.

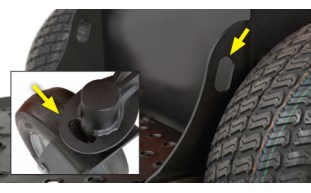

  • Front & Rear Tie Downs: Offer secure tie-down points for ease of transport.
  • Branch Availability

    content loaded

    Specifications

    • BrandBilly Goat
    • ApplicationOutdoor
    • Shipping Dimensions63 x 42 x 50 inch
    • ChannelMaintenance Channel
    • ColorOrange, Black
    • Each Product Weight848 pound
    • Minimum Sell Quantity1
    • Blower TypeWalk Behind
    • Commercial, Residential, or ProfessionalCommercial, Professional
    • Fuel Tank Capacity10 gallon
    • Max Air Speed165 miles per hour
    • Max Air Volume4500 cubic feet per min
    • Power TypeGas
    • Start TypeElectric

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

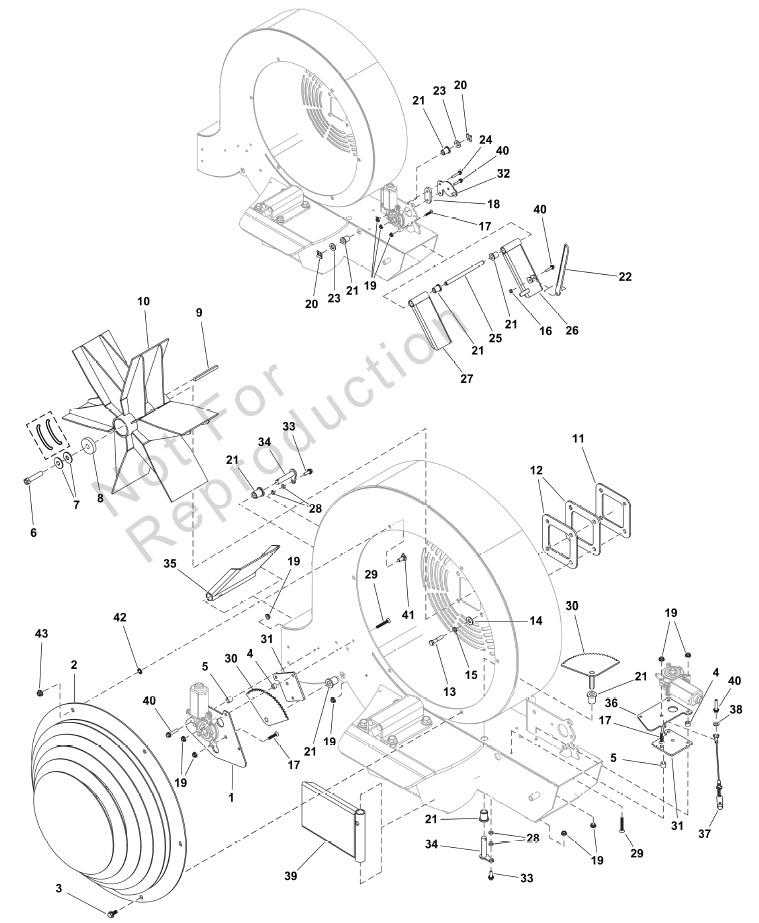

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    5107338AFS
    Plate
    Product #:
    Mfg #: 5107338AFS
    Notes:
    Plate only, motor shown for reference only
    2
    2
    5418562AFS
    Cover
    Product #:
    Mfg #: 5418562AFS
    3
    3
    703354
    Screw, 5/16-18
    Product #:
    Mfg #: 703354
    Notes:
    Qyt 6, S/N: 4002469623 and below
    4
    4
    5107396FS
    Spacer
    Product #:
    Mfg #: 5107396FS
    Notes:
    Qty 4
    5
    5
    5106902FS
    Spacer
    Product #:
    Mfg #: 5106902FS
    Notes:
    Qty 3
    6
    6
    5025016X16FS
    Bolt
    Product #:
    Mfg #: 5025016X16FS
    Notes:
    Torque impeller mounting bolt to 65 ft-lbs (88 Nm)
    7
    7
    5025585YP
    Belleville Washer
    Product #:
    Mfg #: 5025585YP
    Notes:
    Qty 2
    8
    8
    5106924FS
    Washer
    Product #:
    Mfg #: 5106924FS
    9
    9
    5106925FS
    Key
    Product #:
    Mfg #: 5106925FS
    10
    10
    5419589FS
    Impeller
    Product #:
    Mfg #: 5419589FS
    11
    11
    5107364FS
    Plate, Spacer
    Product #:
    Mfg #: 5107364FS
    12
    12
    5107363FS
    Plate, Spacer
    Product #:
    Mfg #: 5107363FS
    Notes:
    Qty 2
    13
    13
    5025025X12YP
    Bolt
    Product #:
    Mfg #: 5025025X12YP
    Notes:
    Qty 4
    14
    14
    5025337FS
    Washer
    Product #:
    Mfg #: 5025337FS
    Notes:
    Qty 5
    15
    15
    5025170SM
    Washer, 5/16" Lock
    Product #:
    Mfg #: 5025170SM
    Notes:
    Qty 4
