Raypak
MVB P-1504A Cold Run Commercial Vertical Swimming Pool Heater 1,500,000K BTU/H
Product #:RAY-15-1014
Mfg. Part #:014384
Raypak® 14384 MVB P-1504A Cold Run Commercial Vertical Swimming Pool Heater 1,500,000K BTU/H
Raypak
MVB P-1504A Cold Run Commercial Vertical Swimming Pool Heater 1,500,000K BTU/H
Product #:RAY-15-1014
Mfg. Part #:014384
EA
Description
Raypak® 14384 MVB P-1504A Cold Run Commercial Vertical Swimming Pool Heater 1,500,000K BTU/H - Built in condensation protection. Variable speed pump automatically adjusts inlet water temp to prevent condensation. This heater can be stored indoor or outdoor.
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationIndoor, Outdoor, Pool, Spa
- Shipping Dimensions26 x 30 x 61 inch
- BTU Input1425000 British thermal unit
- BTU Output1211000 British thermal unit
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight950 pound
- Fuel TypeNatural Gas
- Heat Exchanger MaterialCupro Nickel
- Minimum Sell Quantity1
- Warranty - AdditionalParts - 1 year, Labor - 1 year, Heat Exchanger - 5 year
- Warranty - General1 years
- UPC Code840328424313
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes

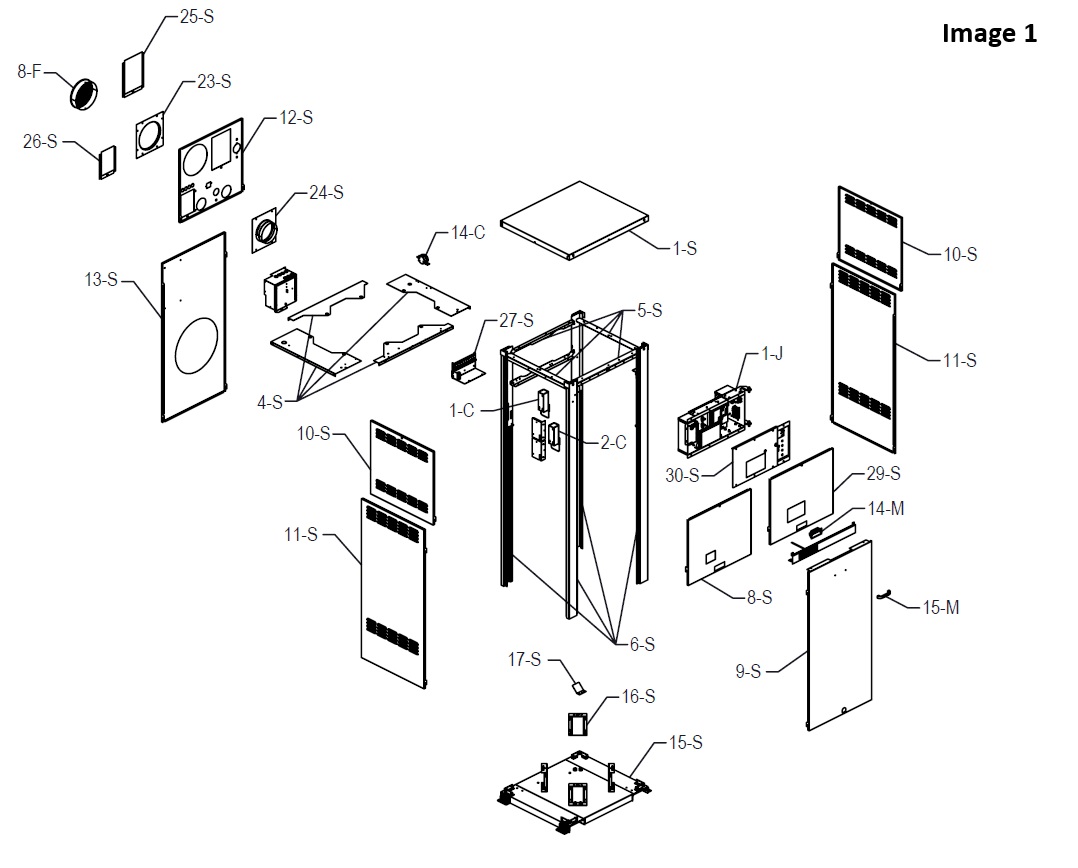

25-S
25-S
014617F
Access Panel
Product #:
Mfg #: 014617F
Notes:

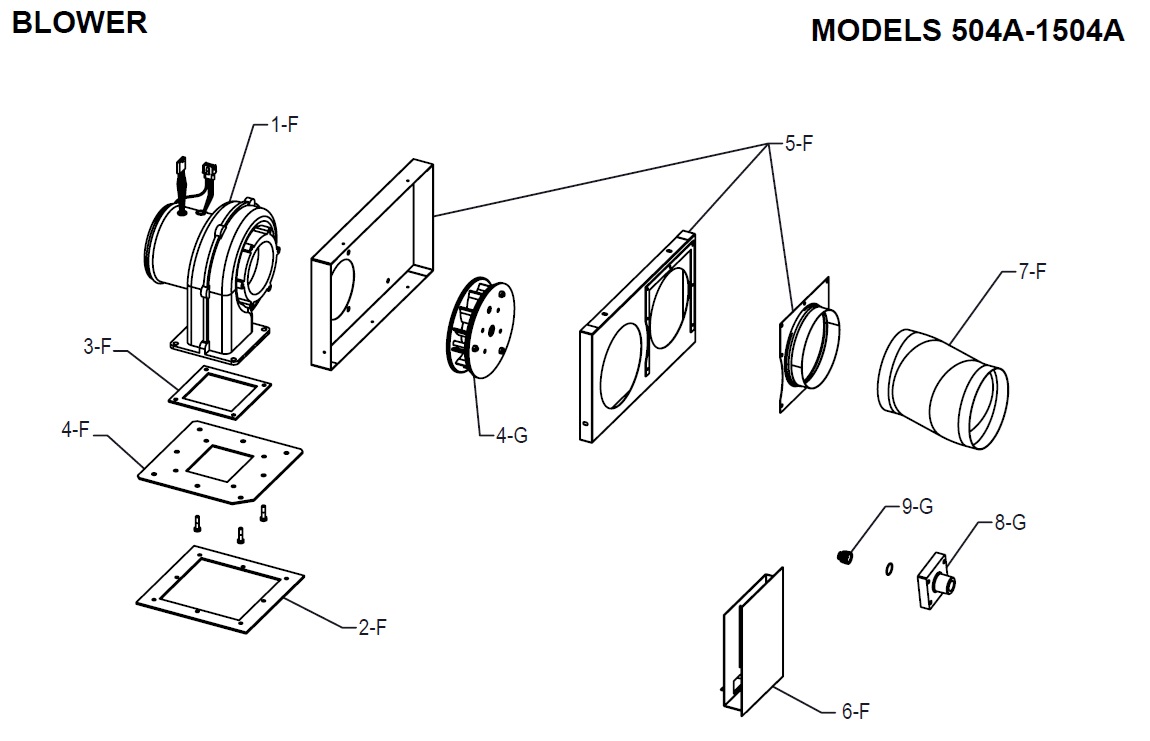

Image 18-F
8-F
011865F
Screen Intake Vent Cap
Product #:
Mfg #: 011865F
Notes:
Image 123-S
23-S
011899F
Intake Air Collar (Outside)
Product #:
Mfg #: 011899F
Notes:
Image 126-S
26-S
011906F
Access Panel Wiring Box
Product #:
Mfg #: 011906F
Notes:
Image 112-S
12-S
014611F
Jacket Upper Rear Panel
Product #:
Mfg #: 014611F
Notes:
Image 124-S
24-S
011905F
Intake Air Collar (Inside)
Product #:
Mfg #: 011905F
Notes:
Image 113-S
13-S
012280F
Jacket Lower Rear Panel
Product #:
Mfg #: 012280F
Notes:
Image 114-C
4-S
4-S
014590F
Heat Transfer Supports
Product #:
Mfg #: 014590F
Notes:
Image 11-S
1-S
014589F
Jacket Top
Product #:
Mfg #: 014589F
Notes:
Image 127-S
27-S
014519F
Wiring Panel 24V
Product #:
Mfg #: 014519F
Notes:
Image 110-S
10-S
014607F
Jacket Upper Side Panel
Product #:
Mfg #: 014607F
Notes:
Image 111-S
11-S
011822F
Jacket Lower Side Panel
Product #:
Mfg #: 011822F
Notes:
Image 15-S
5-S
014651F
Upper Cabinet Supports
Product #:
Mfg #: 014651F
Notes:
Image 11-C

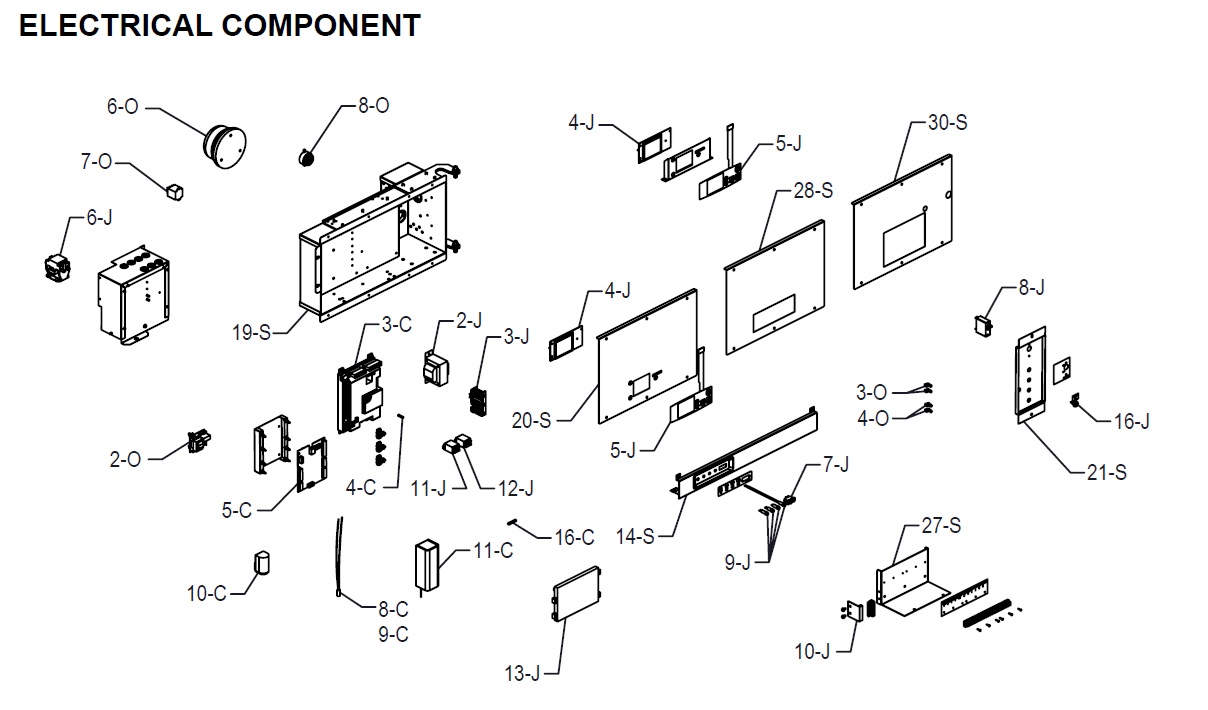

1-C
007141F
Auto-Reset Adjustable High Limit 240F Max
Product #:
Mfg #: 007141F
Notes:
Image 1Wholegoods
There are no wholegoods available.
