Jandy
VS PlusHP Pump 2.7HP 115/230V with SpeedSet Controller
Product #:JDY-10-1003
Mfg. Part #:VSPHP270DV2AS
Jandy VS PlusHP VSPHP270DV2AS 2.7HP Pump 115/230V with SpeedSet Controller
Jandy
VS PlusHP Pump 2.7HP 115/230V with SpeedSet Controller
Product #:JDY-10-1003
Mfg. Part #:VSPHP270DV2AS
Description
VS PlusHP is a high performance, energy-efficient pool pump, in a mid-sized body that reduces energy costs by over $1,100 versus single-speed pool pumps. Designed for feature rich pools, the VS PlusHP is engineered with an enhanced motor providing dual voltage capabilities and two auxiliary relays — making it easy to add automation for simple, convenient pool operation.
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationInground, Pool
- Shipping Dimensions33 x 14.5 x 18.5 inch
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight64 pound
- Green or Energy Efficient ProductTrue
- Horsepower2.7 horse power
- Minimum Sell Quantity1
- Motor Enclosure TypeTotally Enclosed Fan Cooled
- Thrust HP2.7
- Voltage115V, 230V
- Weighted Energy Factor (WEF)7.2/8.9
- Connection Size 12 inch
- Standards ApprovalsNSF Certified, Energy Star Certified, cETLus Listed
- Wattage2550 watt
- UPC Code052337101868
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

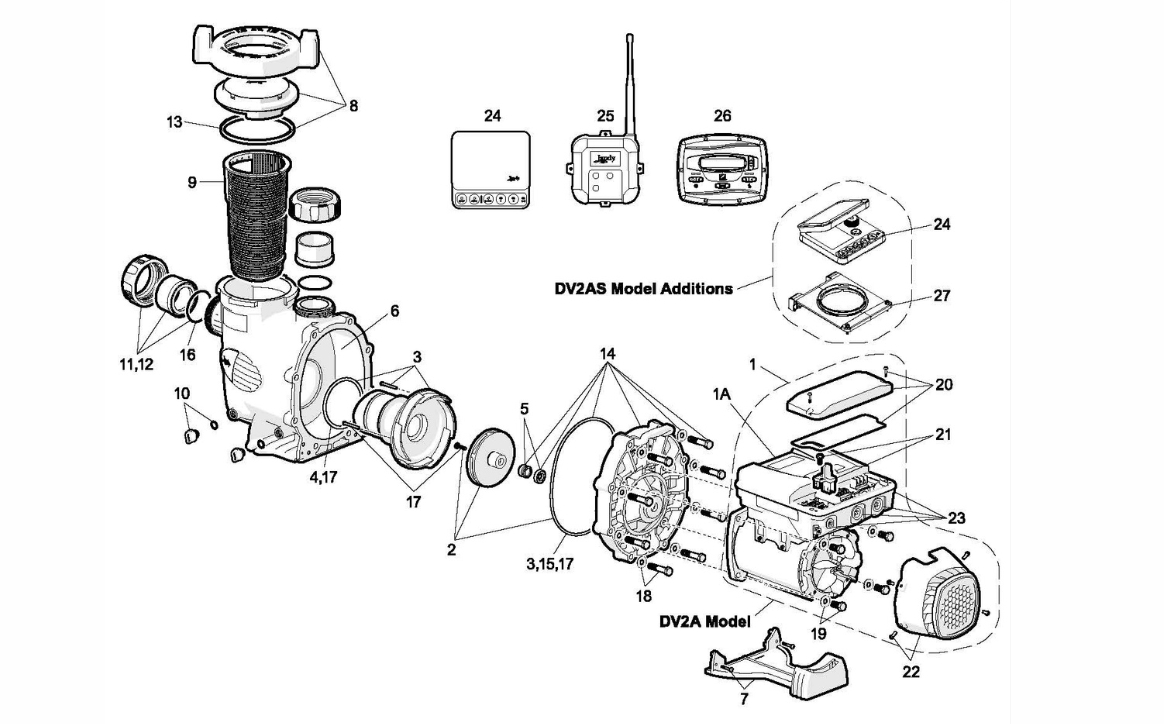

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R0816800
Motor/Drive, 2.7 HP DV2A models
Product #:
Mfg #: R0816800
Notes:
Qty 11A
1A
R0974400
TLD-101-0011
Product #: TLD-101-0011
Mfg #: R0974400
Notes:
Qty 12
2
R0807200
JDY-101-1005
Product #: JDY-101-1005
Mfg #: R0807200
Notes:
Qty 13
3
R0445400
TLD-101-2006
Product #: TLD-101-2006
Mfg #: R0445400
Notes:
Qty 14
4
R0622000
TLD-101-1102
Product #: TLD-101-1102
Mfg #: R0622000
Notes:
Qty 14
5
5
R0479400
TLD-101-2032
Product #: TLD-101-2032
Mfg #: R0479400
Notes:
Qty 15
5
6
6
R0448700
TLD-101-2009
Product #: TLD-101-2009
Mfg #: R0448700
Notes:
Qty 17
7
R0445700
TLD-101-2011
Product #: TLD-101-2011
Mfg #: R0445700
Notes:
Qty 18
8
R0448800
TLD-101-2012
Product #: TLD-101-2012
Mfg #: R0448800
Notes:
Qty 19
9
R0448900
TLD-101-2014
Product #: TLD-101-2014
Mfg #: R0448900
Notes:
Qty 110
11
11
R0449000
TLD-101-2028
Product #: TLD-101-2028
Mfg #: R0449000
Notes:
Qty 2Wholegoods
There are no wholegoods available.
