Century

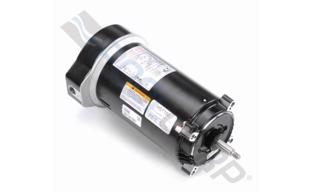

Centurion PRO Pool and Spa Pump Motor 1.5HP 230/115V
Product #:AOS-60-2726
Mfg. Part #:HST150

Century® Centurion® Pro HST150 Pool and Spa Pump Motor; 1.5 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 56J Frame, ODP
Century
Centurion PRO Pool and Spa Pump Motor 1.5HP 230/115V
Product #:AOS-60-2726
Mfg. Part #:HST150
Description
When it comes to durability, installer - friendly features, and overall ergonomics, no other replacement pump motor comes close to a superbly crafted Centurion® PRO pool and spa motor. In addition to one of the most reliable switch and governor mechanisms in the industry and premium bearings on both the pump and lead ends of the motor, the innovative hybrid end frame design boasts a new PCB terminal board, voltage change device and a definitive shaft access path. The Centurion PRO design packs best-in-class features into a rugged, accessible layout that improves the installati on experience.
Documents
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions16.75 x 9.25 x 9.25 inch
- Amps High Speed17.2
- Amps Low Speed8.6
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight26.15 pound
- Frequency Rating (Hz)60
- Horsepower1.5 horse power
- Insulation ClassF
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity40
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1
- Shaft Design7/16 Threaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- Voltage115V, 230V
- Diameter6.5 inch
- Flange TypeRound
- Frame MaterialRolled Steel
- Motor Capacitor TypeStart
- Standards ApprovalsCSA Certified
- UPC Code786674069801
