Aqua Creek F-702RLSDD Revolution Deep Draft with Spa Attachment
Description
Aqua Creek F-702RLSDD Revolution Deep Draft with Spa Attachment. The Revolution™ Lift is an extremely versatile lift that can accommodate in ground and partially raised spas and pools. The Revolution™ features a robust 500 lb weight capacity and an adjustable seat pole to provide access to a wider variety of users and provide additional clearance for short pool walls and curbs. The Revolution™ is designed to be self-operated by the individual user. With an easy to use 4 button handset, the user is able to control all movement and enjoy a fully independent aquatic experience.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandAqua Creek
- ApplicationPool, Pool Deck
- Shipping Dimensions44 x 34 x 78 inch
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight355 pound
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- UPC Code811628024466
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

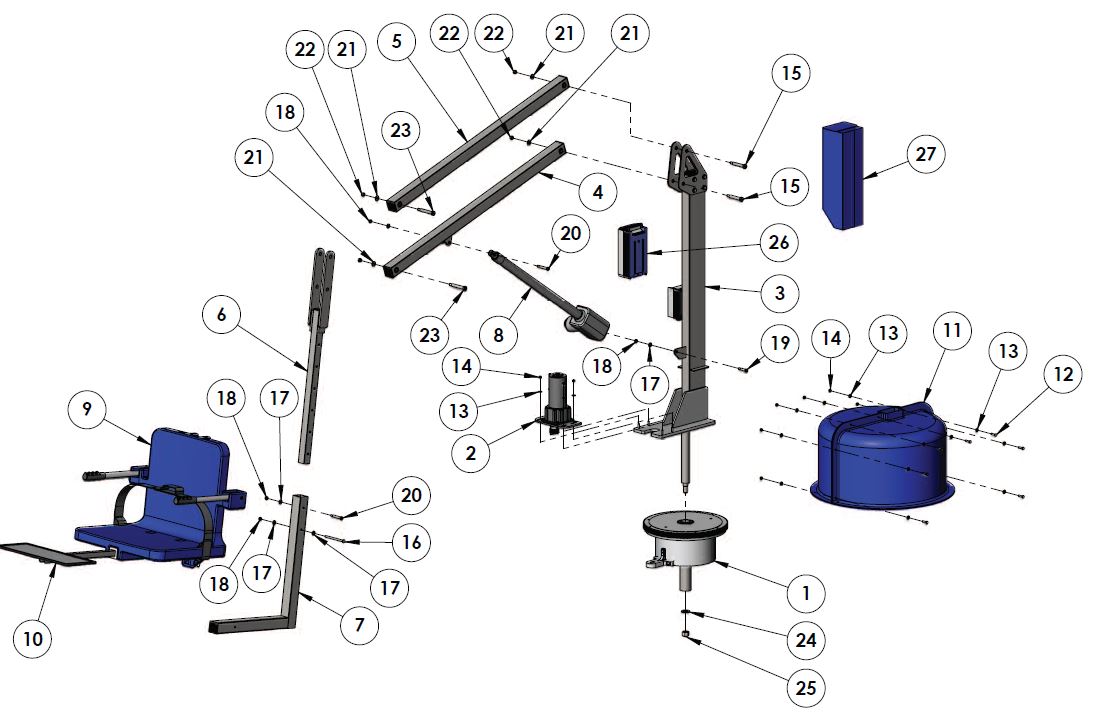

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
REV-200-96
BASE ASSEMBLY
Product #:
Mfg #: REV-200-96
2
2
REV-300-40
ROTATE MOTOR ASSEMBLY
Product #:
Mfg #: REV-300-40
3
3
REV-400-71
MAST ASSEMBLY
Product #:
Mfg #: REV-400-71
4
4
REV-500-10-DD
LIFTING ARM ASSEMBLY
Product #:
Mfg #: REV-500-10-DD
5
5
REV-600-10-DD
CONTROL ARM ASSEMBLY
Product #:
Mfg #: REV-600-10-DD
6
6
REV-700SP-00
SPA CHAIR ARM ASSEMBLY
Product #:
Mfg #: REV-700SP-00
7
7
REV-800-20
CHAIR CRADLE ASSEMBLY
Product #:
Mfg #: REV-800-20
8
8
340643-00
LINAK, 600MM ACTUATOR
Product #:
Mfg #: 340643-00
9
9
SA-0904WDCAB
22" WIDE SEAT ASSEMBLY
Product #:
Mfg #: SA-0904WDCAB
10
10
F-105LAR-01
PULL-OUT LEGREST ASSEMBLY
Product #:
Mfg #: F-105LAR-01
11
11
P-931
BLUE PLASTIC SHROUD
Product #:
Mfg #: P-931
12
12
BH 1/4 X 1
BOLT, 316 SS, 1/4-20 X 1 HCS
Product #:
Mfg #: BH 1/4 X 1
13
13
WF 1/4
WASHER, FLAT, 1/4, 316 SS
Product #:
Mfg #: WF 1/4
14
14
NN 1/4
NUT, 316 SS, NYLOCK, 1/4-20
Product #:
Mfg #: NN 1/4
15
15
BS 1/2 X 2 3/4 18-8
BOLT, 18-8 SS, 1/2 X 2 3/4 SHOULDER, 3/8-16 THREAD
Product #:
Mfg #: BS 1/2 X 2 3/4 18-8
