AquaPro Apex APF150PRO APEX 150 SqFt Cartridge Filter Black
Description
Remove dirt and debris down to 20 microns with our high performance Apex series cartridge filters. These Eco friendly solutions are an upgrade to standard sand filters and require minimal maintenance.
Branch Availability
content loaded
Specifications
- BrandAquaPro
- ApplicationAbove Ground, Inground, Pool
- Shipping Dimensions34.5 x 17.4 x 17.4 inch
- ColorBlack
- MaterialThermoplastic
- Cartridges Required1
- Design Flow Rate75 gal/min
- Distance Between Inlet/Outlet13.75 inch
- Distance Inlet and Base16.875 inch
- Distance Outlet and Base3.125 inch
- Each Product Weight37.4 pound
- Filter Tank Molding TypeReinforced Thermoplastic
- Filtration Area150 square feet
- Filtration Rate150 GPM/ft2
- Master Carton Quantity1
- Maximum Flow Rate150 gal/min
- Maximum Working Pressure50 pounds per square inch
- Pallet Quantity1
- Pipe Size2 inch
- Plumbing Size2 inch
- Plumbing Size FITNPT
- Product Height34 inch
- Tank ColorBlack
- Tank MaterialThermoplastic
- Turnover 10hrs90000 gallon
- Turnover 6hrs54000 gallon
- Turnover 8hrs72000 gallon
- Vertical Clearance38.25 inch
- UPC Code040066213181

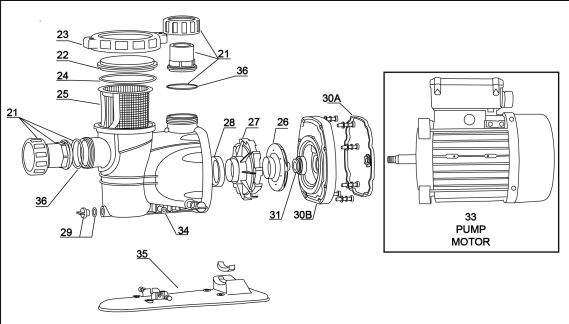

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1A
1A
62554-001
Filter Cartridge
Product #:
Mfg #: 62554-001
Notes:
95 ft2 - short1B
1B
62555-001
Filter Cartridge
Product #:
Mfg #: 62555-001
Notes:
125 ft2 - short1C
1C
62556-001
Filter Cartridge
Product #:
Mfg #: 62556-001
Notes:
150 ft2 - short1D
1D
62556-002
Filter Cartridge
Product #:
Mfg #: 62556-002
Notes:
150 ft2 - tall1E
1E
62557-001
Filter Cartridge
Product #:
Mfg #: 62557-001
Notes:
200 ft2 - tall1F
1F
62558-001
AQO-051-1001
Product #: AQO-051-1001
Mfg #: 62558-001
Notes:
250 ft2 - tall2A
2A
68028-001
Breather Tube
Product #:
Mfg #: 68028-001
Notes:
Short2B
2B
68029-001
Breather Tube
Product #:
Mfg #: 68029-001
Notes:
Tall3
3
28584-001
Flow Diverter
Product #:
Mfg #: 28584-001
4
4
28576-001
Locking Ring
Product #:
Mfg #: 28576-001
5
5
06913-001
Pressure Gauge
Product #:
Mfg #: 06913-001
6
6
28585-001
Air Relief Valve Assembly
Product #:
Mfg #: 28585-001
Notes:
Includes O-Rings7
7
28580-001
Filter Top
Product #:
Mfg #: 28580-001
8
8
19079-001
O-Ring Kit
Product #:
Mfg #: 19079-001
Notes:
Includes Lubricant9
9
28574-001
Filter Base
Product #:
Mfg #: 28574-001
