- This product is obsolete.
- The superceded product was not found.
Emaux 9140402 Galaxy Single Element Cartridge Filter
Description
Emaux 9140402 Galaxy Single Element Cartridge Filter - Galaxy Single-Element Cartridge Filter is built with high-strength and UV-resistant material to prolong the product life. The compact and low height design is suitable for any pool especially with limited system setup space. The extensive dirt-catching capability of the filter element makes this filter highly efficient. It is a reliable choice for crystal clear water.
Branch Availability
content loaded
Specifications
- BrandEmaux
- ApplicationPool
- Shipping Dimensions0 x 0 x 0 inch
- Cartridges Required1
- Each Product Weight0 pound
- Filtration Area150 square feet
- Maximum Flow Rate120 gal/min
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Tank ColorGray
- Tank MaterialPlastic

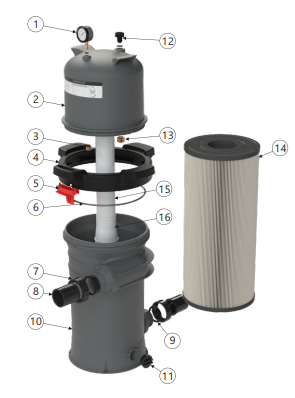

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
117068519
Pressure Gauge 60psi, plastic casing
Product #:
Mfg #: 117068519
2
2
550188199
Upper Body
Product #:
Mfg #: 550188199
3
3
570818164
Nut D22X15
Product #:
Mfg #: 570818164
4
4
550058153
Lock Ring
Product #:
Mfg #: 550058153
5
5
550058196
Latch
Product #:
Mfg #: 550058196
6
6
11000036
O-Ring D306Xd7.5
Product #:
Mfg #: 11000036
7
7
430178159
Union Nut 2"
Product #:
Mfg #: 430178159
Notes:
2 req8
8
430308158
Union 2inch/2.5inch ANSI
Product #:
Mfg #: 430308158
Notes:
2 req9
9
111040071
O-Ring D77Xd62X8
Product #:
Mfg #: 111040071
Notes:
2 req10
10
E140401
IFC100-200 Bottom Body
Product #:
Mfg #: E140401
11
11
E160553
End Cap with O-Ring
Product #:
Mfg #: E160553
12
12
E010201
Air Relief Valve with O-Ring
Product #:
Mfg #: E010201
13
13
570818165
Nut D31X20 14G
Product #:
Mfg #: 570818165
14
14
914100005
ICF150 Element
Product #:
Mfg #: 914100005
15
15
107048520
PVC Pipe 2.5inch 440mm
Product #:
Mfg #: 107048520
Wholegoods
There are no wholegoods available.
