4" Submersible 3-Wire Motor 1HP

Product #:GOU-10-1097

Mfg. Part #:M10412

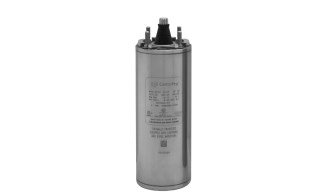

CentriPro M10412 4" Submersible 3-Wire Motor 1HP; Single Phase, 60Hz

Goulds

4" Submersible 3-Wire Motor 1HP

Product #:GOU-10-1097

Mfg. Part #:M10412

Description

CentriPro M10412 4" Submersible 3-Wire Motor 1HP; Single Phase, 60Hz is designed and sized for installation in 4" diameter or larger water wells. Three wire motors are a capacitor start induction run design and require a control box with a starting relay and capacitor. Use the CSCR capacitor start/capacitor run control boxes on ½ - 1 HP motors to increase efficiency and motor life and reduce energy consumption.

Documents

Feature Bullets

  • Three-Wire - Capacitor Start Motor Design
  • Use with our CentriPro Quick Disconnect or CSCR style control boxes
  • Two-Wire PSC (Permanent Split Capacitor) design
  • Quieter than split-phase, 2-wire motors and reduces pulsation noise Capacitor built-in and hermetically sealed
  • Laser Welded - 21st century welding technology for improved welds
  • 700 Lb Thrust Rating - much higher than competitive motors
  • Precision machined, one-piece, stainless steel castings used for upper and lower end bells
  • Water-filled design with non-toxic propylene glycol solution to protect the motor during shipping and storage
  • Built-in check valve allows well water to enter motor as needed
  • Replaceable motor lead held in place by screws for controlled compression

    • Branch Availability

    content loaded

    Specifications

    • BrandGoulds
    • ApplicationPool
    • Shipping Dimensions18 x 4 x 4 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight24 pound
    • Minimum Sell Quantity1
    • PhaseSingle
    • Service Factor1.4
