National Diversified Sales

15" Round Green Grate

Product #:NDS-58-1120

Mfg. Part #:1512

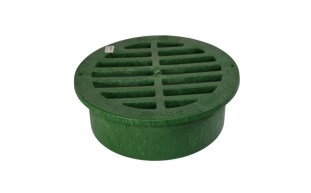

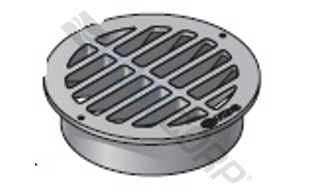

NDS 1512 15" Round Green Grate

National Diversified Sales

15" Round Green Grate

Product #:NDS-58-1120

Mfg. Part #:1512

Description

NDS 1512 15" Round Green Grate is a proven alternative to traditional concrete drains with UV inhibitors are used to prevent fading and cracking from the sun, chemical-resistant, rustproof and maintenance-free, lightweight and easy to install. NDS has a full line of drainage products, fittings and accessories available. This grate helps to collect and remove excess water from driveways, patios and any other outdoor areas, designed for maximum durability to handle light foot traffic.

Documents

Feature Bullets

  • Fits: use with 15" Sewer and Drain Fittings, 15" corrugated pipe
  • Made of UV protected high density polyethylene (HDPE)
  • Grate openings: 85.60 sq. in. open space
  • Will accommodate 261.86 GPM with 1/2" of head
  • Load rate: Class B

    • Branch Availability

    content loaded

    Specifications

    • BrandNational Diversified Sales
    • ApplicationIrrigation
    • Shipping Dimensions40.1 x 8.2 x 9.1 inch
    • ColorGreen
    • Cover Open Area85.6 square feet
    • Each Product Weight6.5 pound
    • Flow Rate261.86 gal/min
    • Grate ColorGreen
    • Grate ShapeRound
    • Grate Size15 inch
    • MaterialPolyethylene (plastic)
    • Minimum Sell Quantity1
    • Product Depth17 inch
    • Product Height4.5 inch
    • Product Width17 inch
    • UPC Code052063015125

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    There are no parts or schematics available.
