42" Commercial Vertical Sand Filter SMD1050 with 3" Bulkhead 58 PSI

Product #:BAK-05-2026

Mfg. Part #:30501054801NA


Waterco 30501054801NA 42" Commercial Vertical Sand Filter SMD1050 with 3" Bulkhead 58 PSI

Waterco

42" Commercial Vertical Sand Filter SMD1050 with 3" Bulkhead 58 PSI

Product #:BAK-05-2026

Mfg. Part #:30501054801NA

EA

Description

Manufactured from the highest grade of non corrosive materials and employing the latest in fiberglass winding technology, Micron fiberglass filters are designed and built for many years of trouble free operation.

Documents

Feature Bullets

  • Fiberglass wound tank, UV and Corrosion Resistant
  • Hydraulically balanced laterals to maximise water flow and filtration
  • Optional six position Multiport valve with sight glass and quick connect half unions
  • Available in filter areas of 1.13m2 to 2.01m2
  • Pressure rated at 250 kPa (36 psi), 400 kPa (58 psi), 600 kPa (87psi) and up to 800 kPa (116 psi)
  • Maximum working temperature of 50°C (122°F)
  • Optional sight glasses and lateral man holes
  • Optional fiberglass reinforced vinyl ester for improved chemical resistance

    • Branch Availability

    content loaded

    Specifications

    • BrandWaterco
    • ApplicationPool
    • Shipping Dimensions50 x 50 x 63 inch
    • Backwash Min Flow Rate144 gal/min
    • ChannelNone
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight430 pound
    • Filter Media Pea Gravel450 pound
    • Filter Media Sand Required254 gallon
    • Filtration Area9.62 square feet
    • Filtration Rate3 GPM/ft2
    • MaterialFiberglass
    • Maximum Working Pressure58 pounds per square inch
    • Minimum Sell Quantity1
    • Sand Required2950 pound
    • Tank MaterialFiberglass
    • Warranty - General10 years

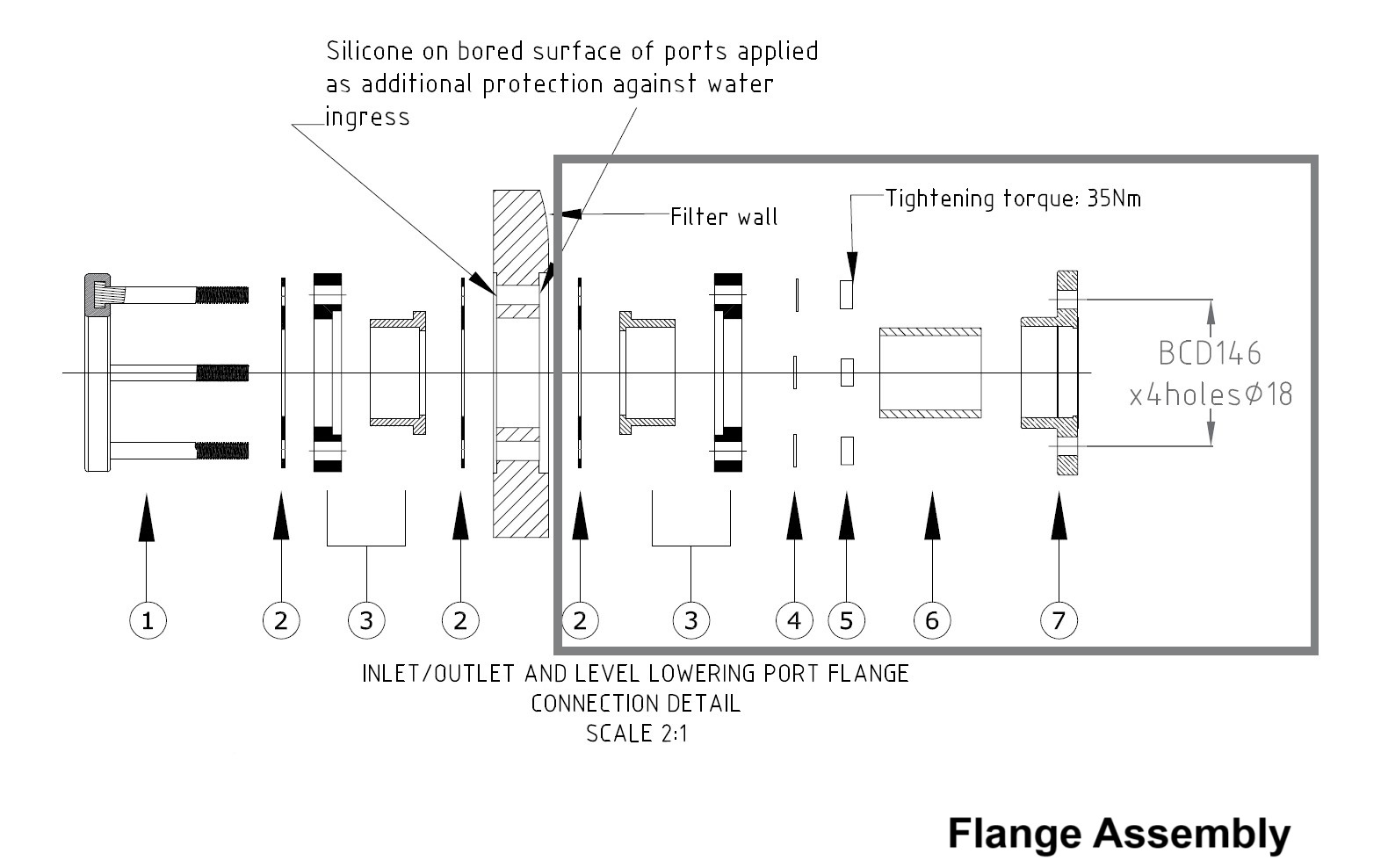

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    W22634S
    Flange Stud Ring 3" ANSI 150
    Product #:
    Mfg #: W22634S
    Notes:
    Flange Assembly
    3
    3
    1216801
    PVC Flange ANSI 150 3"
    Product #:
    Mfg #: 1216801
    Notes:
    Flange Assembly
    4
    4
    1216803
    Washer M16 Full Face SS316
    Product #:
    Mfg #: 1216803
    Notes:
    Flange Assembly
    5
    5
    W22622
    Hex Nut 5/8" UNC SS316
    Product #:
    Mfg #: W22622
    Notes:
    Flange Assembly
    7
    7
    W22408
    PVC Flange 3" AS4087/PN16 SCH80
    Product #:
    Mfg #: W22408
    Notes:
    Flange Assembly

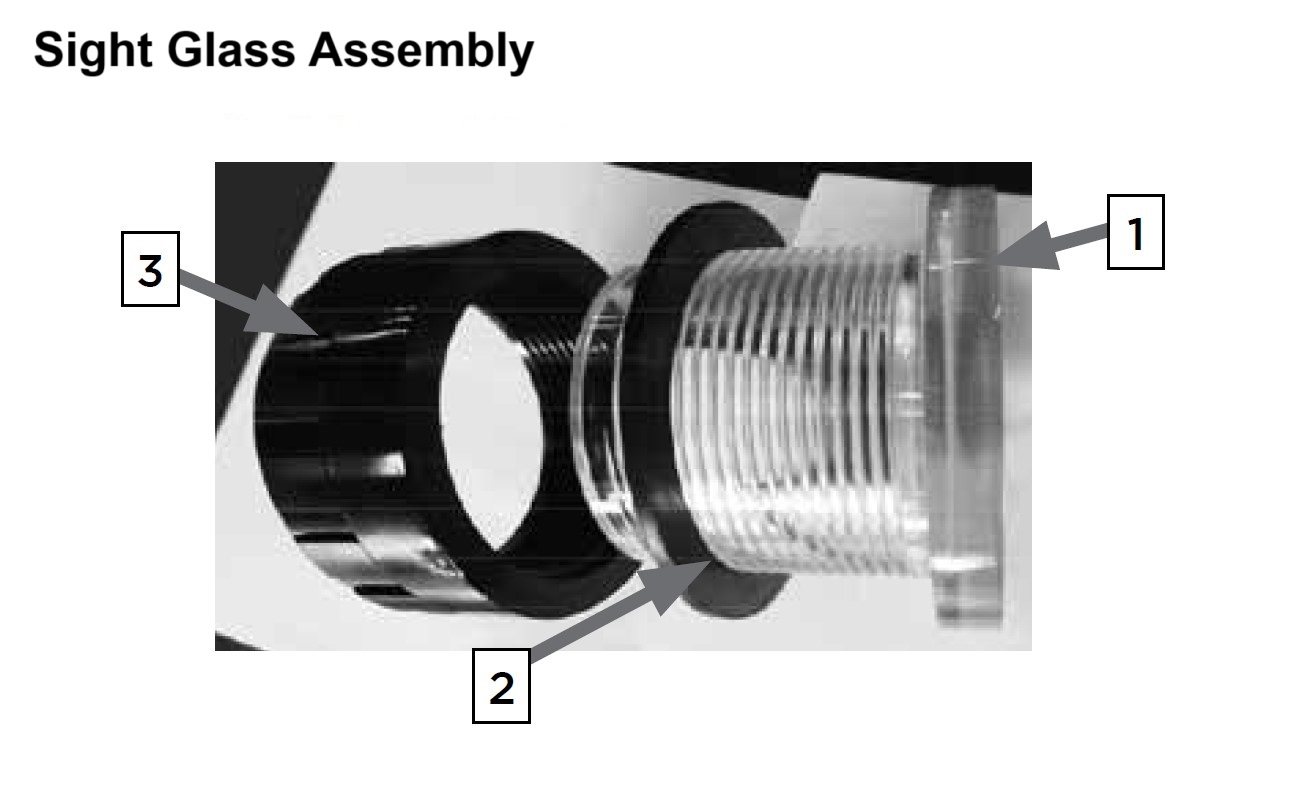

    1
    1
    W22115
    Sight Glass 80MM with Thread
    Product #:
    Mfg #: W22115
    Notes:
    Sight Glass Assembly
    2
    2
    W02250
    Gasket 80MM Bulkhead Rubber
    Product #:
    Mfg #: W02250
    Notes:
    Sight Glass Assembly
    3
    3
    W02254B
    Bulkhead Lock Nut 80MM Black
    Product #:
    Mfg #: W02254B
    Notes:
    Sight Glass Assembly
