Waterco
79" SMD1800 Sand Filter with 6" Flange Connection 58 PSI
Product #:BAK-05-2035
Mfg. Part #:30502004154NA
Waterco 30502004154NA 79" SMD1800 Sand Filter with 6" Flange Connection 58 PSI
Waterco
79" SMD1800 Sand Filter with 6" Flange Connection 58 PSI
Product #:BAK-05-2035
Mfg. Part #:30502004154NA
Description
Manufactured from the highest grade of non corrosive materials and employing the latest in fiberglass winding technology, Micron fiberglass filters are designed and built for many years of trouble free operation.
Branch Availability
content loaded
Specifications
- BrandWaterco
- ApplicationPool
- Shipping Dimensions84 x 84 x 95 inch
- MaterialFiberglass
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight920 pound
- Filter Media Pea Gravel1600 pound
- Filter Media Sand Required767 gallon
- Filtration Area27.5 square feet
- Maximum Working Pressure58 pounds per square inch
- Minimum Sell Quantity1
- Sand Required8650 pound
- Tank MaterialFiberglass

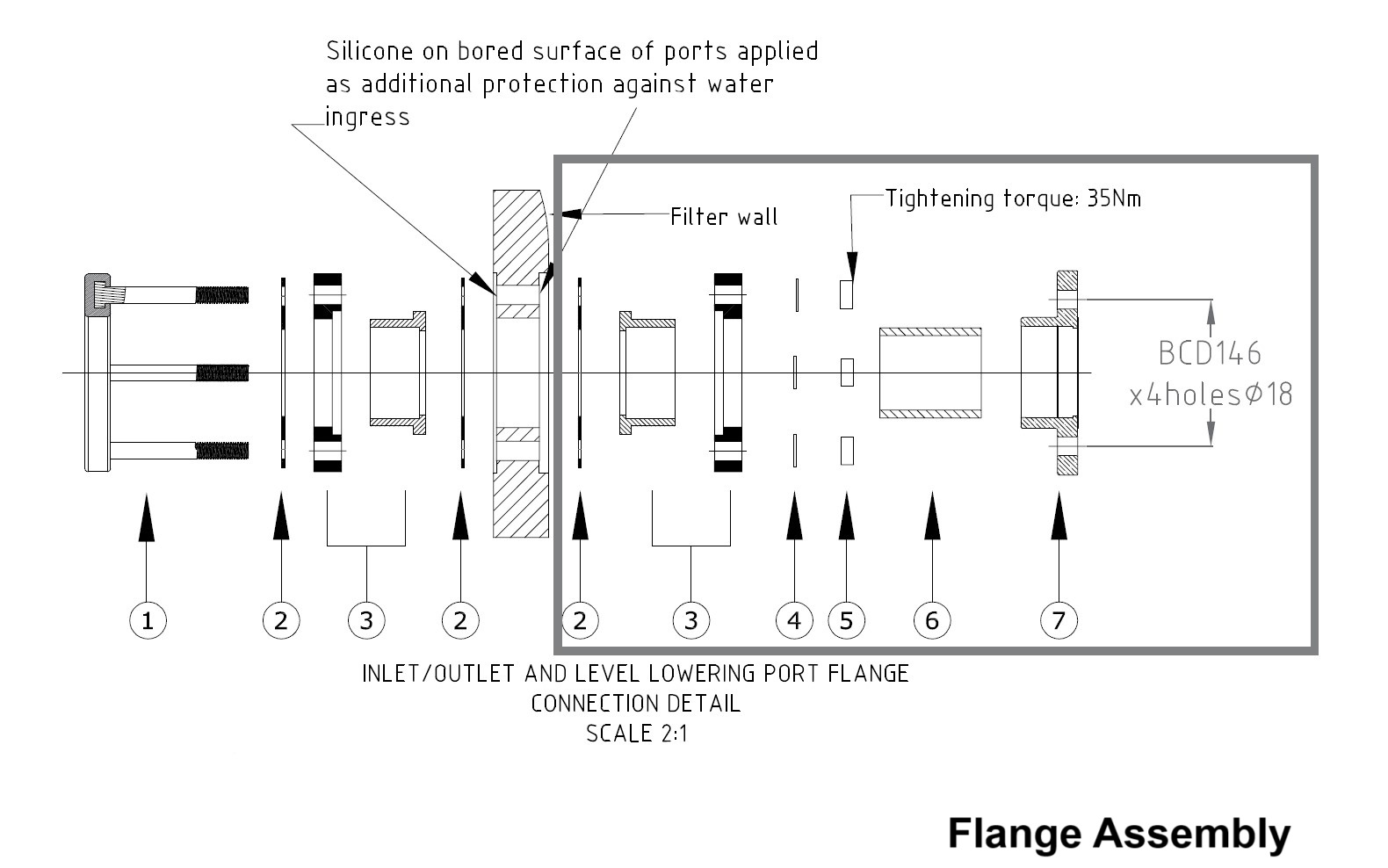

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
W22634S
Flange Stud Ring 3" ANSI 150
Product #:
Mfg #: W22634S
Notes:
Flange Assembly3
3
1216801
PVC Flange ANSI 150 3"
Product #:
Mfg #: 1216801
Notes:
Flange Assembly4
4
1216803
Washer M16 Full Face SS316
Product #:
Mfg #: 1216803
Notes:
Flange Assembly5
5
W22622
Hex Nut 5/8" UNC SS316
Product #:
Mfg #: W22622
Notes:
Flange Assembly7
7
W22408
PVC Flange 3" AS4087/PN16 SCH80
Product #:
Mfg #: W22408
Notes:

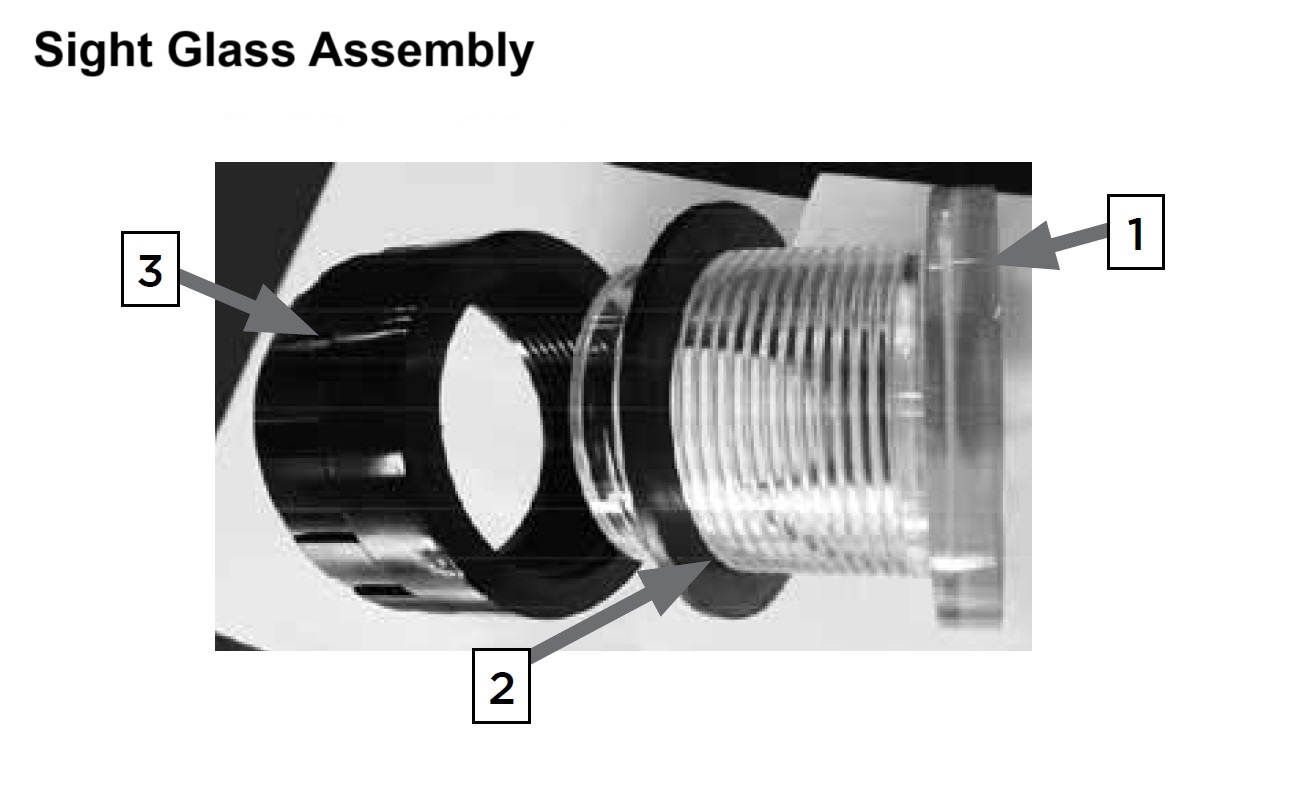

Flange Assembly1
1
W22115
Sight Glass 80MM with Thread
Product #:
Mfg #: W22115
Notes:
Sight Glass Assembly2
2
W02250
Gasket 80MM Bulkhead Rubber
Product #:
Mfg #: W02250
Notes:
Sight Glass Assembly3
3
W02254B
Bulkhead Lock Nut 80MM Black
Product #:
Mfg #: W02254B
Notes:
Sight Glass AssemblyWholegoods
There are no wholegoods available.
