Waterco
63" SMD1600 Sand Filter with 6" Flange Connection 58 PSI
Product #:BAK-05-2041
Mfg. Part #:30491604154NA
Waterco 30491604154NA 63" SMD1600 Sand Filter with 6" Flange Connection 58 PSI
Waterco
63" SMD1600 Sand Filter with 6" Flange Connection 58 PSI
Product #:BAK-05-2041
Mfg. Part #:30491604154NA
EA
Description
Manufactured from the highest grade of non corrosive materials and employing the latest in fiberglass winding technology, Micron fiberglass filters are designed and built for many years of trouble free operation.
Branch Availability
content loaded
Specifications
- BrandWaterco
- ApplicationPool
- Shipping Dimensions84 x 84 x 94 inch
- MaterialFiberglass
- ChannelNone
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight1360 pound
- Filter Media Pea Gravel700 pound
- Filter Media Sand Required561 gallon
- Filtration Area21.64 square feet
- Maximum Working Pressure58 pounds per square inch
- Minimum Sell Quantity1
- Sand Required6800 pound
- Warranty - General10 years

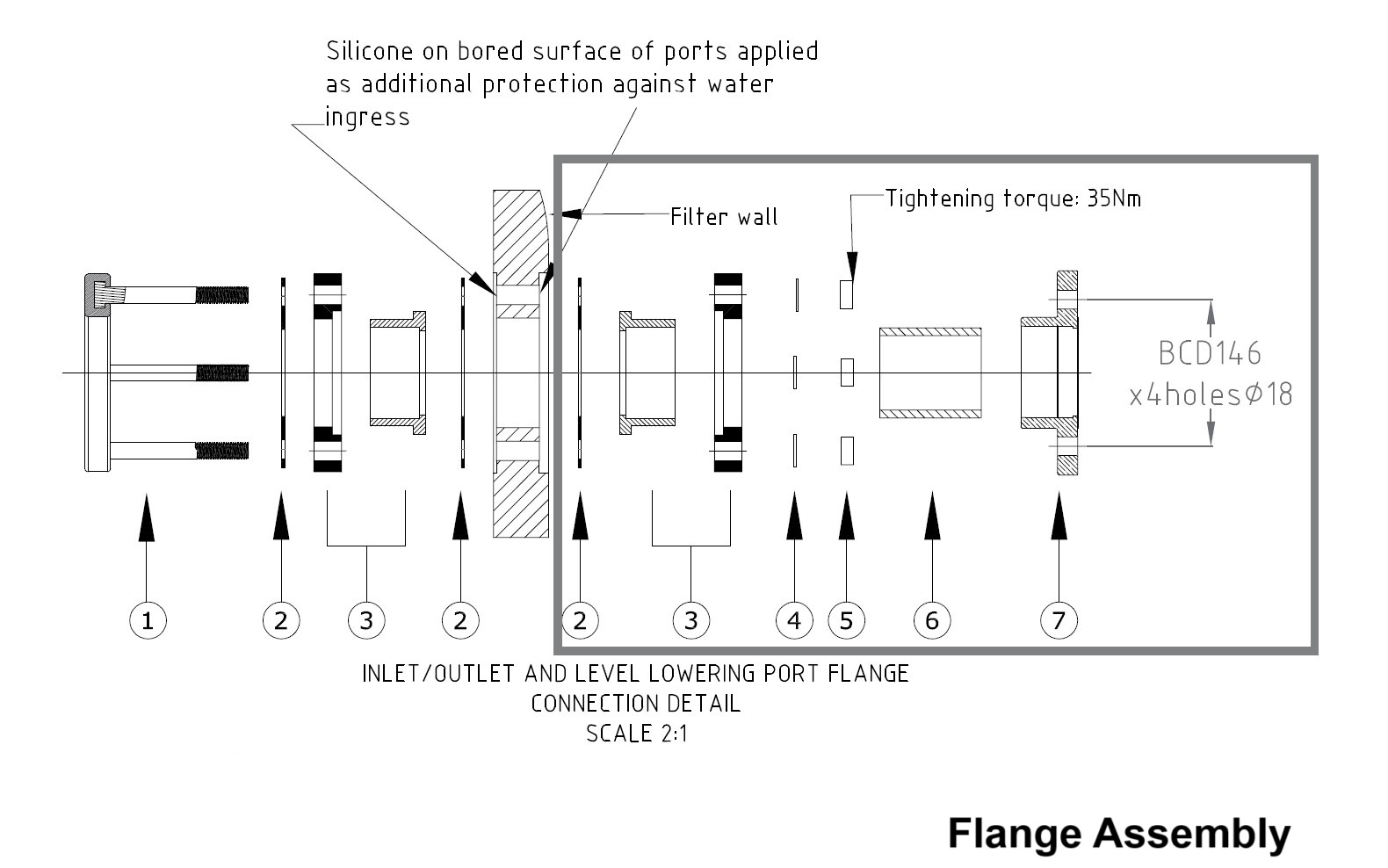

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
W22634S
Flange Stud Ring 3" ANSI 150
Product #:
Mfg #: W22634S
Notes:
Flange Assembly3
3
1216801
PVC Flange ANSI 150 3"
Product #:
Mfg #: 1216801
Notes:
Flange Assembly4
4
1216803
Washer M16 Full Face SS316
Product #:
Mfg #: 1216803
Notes:
Flange Assembly5
5
W22622
Hex Nut 5/8" UNC SS316
Product #:
Mfg #: W22622
Notes:
Flange Assembly7
7
W22408
PVC Flange 3" AS4087/PN16 SCH80
Product #:
Mfg #: W22408
Notes:

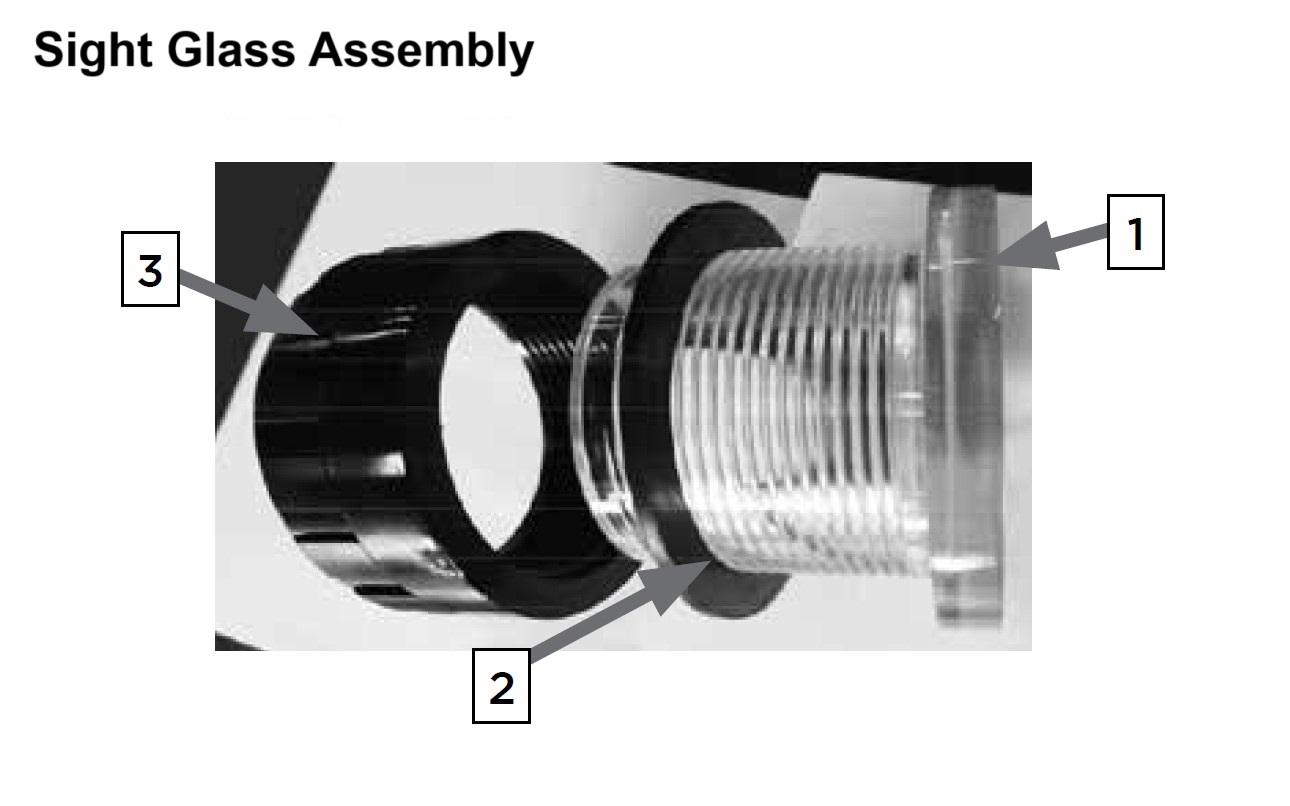

Flange Assembly1
1
W22115
Sight Glass 80MM with Thread
Product #:
Mfg #: W22115
Notes:
Sight Glass Assembly2
2
W02250
Gasket 80MM Bulkhead Rubber
Product #:
Mfg #: W02250
Notes:
Sight Glass Assembly3
3
W02254B
Bulkhead Lock Nut 80MM Black
Product #:
Mfg #: W02254B
Notes:
Sight Glass AssemblyWholegoods
There are no wholegoods available.
