FEBCO

1 1/2" 850 Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff

Product #:FEB-58-1102

Mfg. Part #:T1115


FEBCO T1115 1 1/2" 850 Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff

FEBCO

1 1/2" 850 Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff

Product #:FEB-58-1102

Mfg. Part #:T1115

EA

Description

The FEBCO T1115 is a 1 1/2" 850 Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff. This 1 1/2 inch small diameter double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Feature Bullets

  • Replaceable seats and seat discs
  • Bronze body for durability
  • Modular compact design
  • Top entry
  • Branch Availability

    content loaded

    Specifications

    • BrandFEBCO
    • ApplicationIrrigation
    • Shipping Dimensions16.93 x 11.81 x 6.69 inch
    • ChannelConstruction Channel
    • ColorBronze
    • Each Product Weight17.07 pound
    • MaterialBronze, Silicon, Stainless Steel
    • Minimum Sell Quantity1
    • Warranty - General1 years
    • Commercial, Residential, or ProfessionalCommercial
    • Inlet Diameter1.5 inch
    • Outlet Diameter1.5 inch
    • Pressure Rating Max175 pounds per square inch
    • Valve ColorBronze
    • Valve MaterialBronze
    • Working Temperature Max140 degrees Fahrenheit
    • UPC Code643925585391

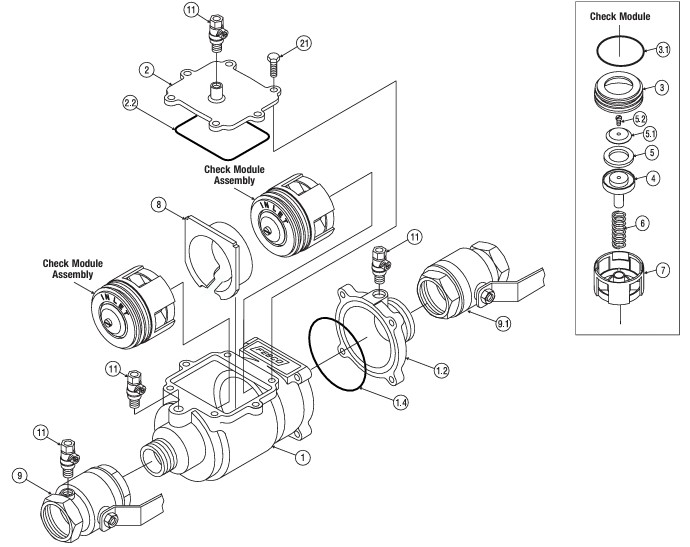

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    110027
    Body
    Product #:
    Mfg #: 110027
    1.2
    1.2
    110138
    Tailpiece
    Product #:
    Mfg #: 110138
    1.4
    1.4
    39604370
    O-ring
    Product #:
    Mfg #: 39604370
    2
    2
    110026
    Cover
    Product #:
    Mfg #: 110026
    2.2
    2.2
    39624070
    O-ring
    Product #:
    Mfg #: 39624070
    3
    3
    500358
    Seat
    Product #:
    Mfg #: 500358
    3.1
    3.1
    39633770
    O-ring
    Product #:
    Mfg #: 39633770
    4
    4
    500357
    Poppet
    Product #:
    Mfg #: 500357
    5
    5
    410128
    Seat Disc
    Product #:
    Mfg #: 410128
    5.1
    5.1
    500384
    Disc Retainer
    Product #:
    Mfg #: 500384
    5.2
    5.2
    51951304
    Round HD Screw
    Product #:
    Mfg #: 51951304
    6
    6
    630169
    Spring
    Product #:
    Mfg #: 630169
    7
    7
    500356
    Guide
    Product #:
    Mfg #: 500356
    8
    8
    500366
    FEB-58-0939
    Product #: FEB-58-0939
    Mfg #: 500366
    9
    9
    781056
    FEB-581-1013
    Ball Valve Tapped
    Product #: FEB-581-1013
    Mfg #: 781056
