Jandy

25" SFTM Top Mount Sand Filter

Product #:TLD-05-1201

Mfg. Part #:SFTM25

  • This product is obsolete.
  • The superceded product was not found.

Jandy SFTM SFTM25 25" Top Mount Sand Filter

Jandy

25" SFTM Top Mount Sand Filter

Product #:TLD-05-1201

Mfg. Part #:SFTM25

Description

Jandy SFTM25 25" SFTM Top Mount Sand Filter directs water evenly across the entire surface of sand without sand migration or channeling. Top-mount pool sand filters contain an extra deep sand bed for improved filtration. Its blow-molded tank is corrosion- and UV-resistant with a bottom drain that’s ideal for winterizing and draining. Other features include 7-way dial valve with sight glass, automatic air relief and pressure gauge. The SFTM has a non-corrosive resin clamp that allows 360 deg rotation of the dial valve for simple installation, alignment, and service of dial valve and filter components. A heavy-duty, freeze-resistant under-drain with "snap-fit" side slotted laterals draws water evenly across the full diameter of the sand bed (up to 25 gpm/sq.ft.) Perfect for higher flows, better filtration, longer cycles and more efficient backwashing.

Branch Availability

content loaded

Specifications

  • BrandJandy
  • ApplicationAbove Ground, Pool
  • Shipping Dimensions25 x 25 x 41 inch
  • Commercial, Residential, or ProfessionalResidential
  • Distance Inlet and Base36.5 inch
  • Distance Outlet and Base40.375 inch
  • Each Product Weight52.2 pound
  • Filtration Area3.3 square feet
  • Includes1-1/2 Inch Unions
  • Master Carton Quantity1
  • Maximum Working Pressure35 pounds per square inch
  • Minimum Sell Quantity1
  • Pallet Quantity1
  • Sand Required350 pound
  • Sand Type Requirements#20 Silica Sand, 40-55 mm Size Range
  • UPC Code052337060714

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

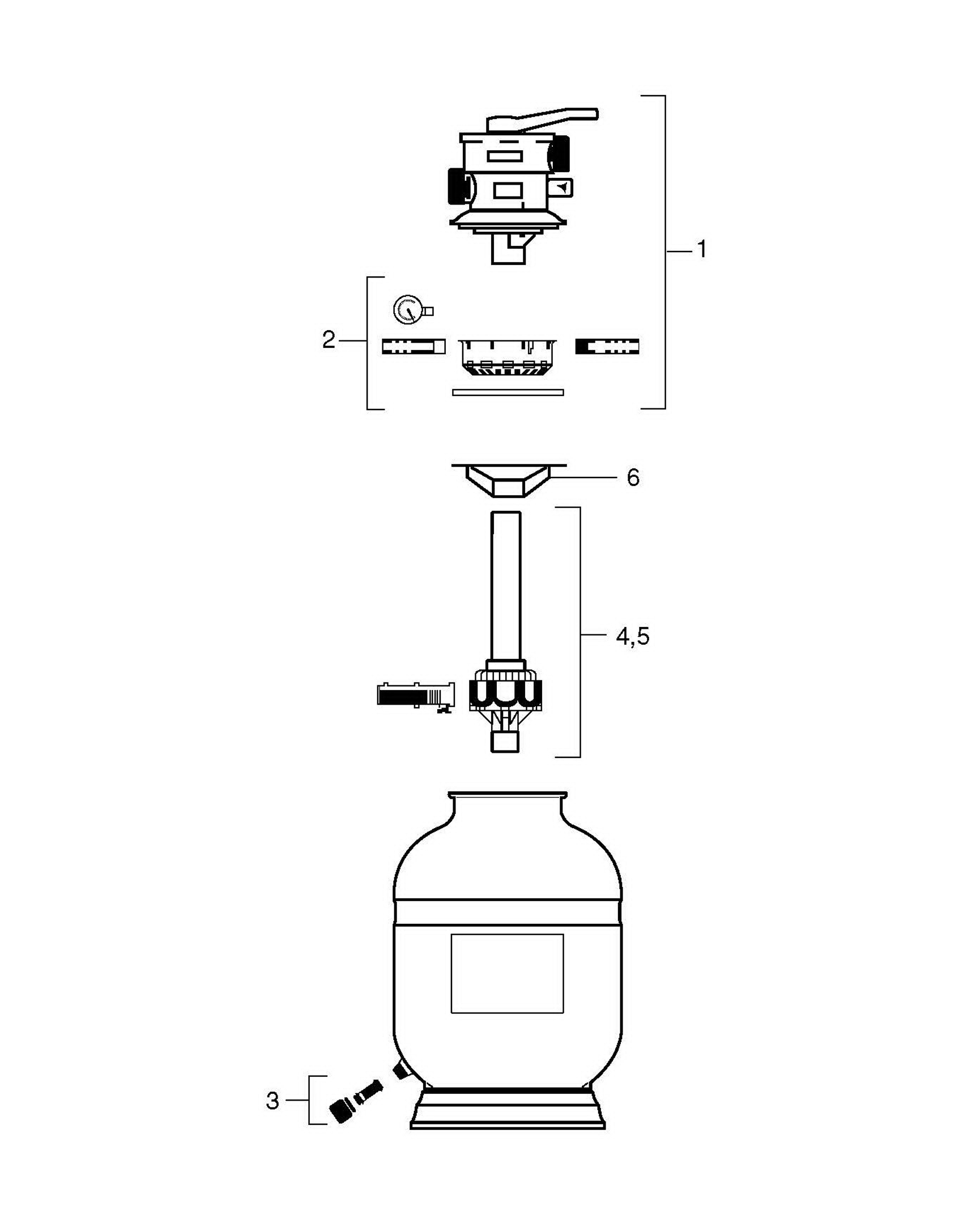

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
SFTM-MPV
TLD-06-109
SFTM-MPV 1.5" SFTM22/25 TOP MT MULTIPORT VALVE KIT W/ CLAMP
Product #: TLD-06-109
Mfg #: SFTM-MPV
2
2
R0492000
TLD-051-1927
R0492000 SFTM FILTER FILTER & VALVE REBUILD KIT
Product #: TLD-051-1927
Mfg #: R0492000
3
3
R0492100
SHA-051-2000
Product #: SHA-051-2000
Mfg #: R0492100
5
5
R0492300
TLD-051-1001
R0492300 25" SFTM25 LATERAL & STANDPIPE ASSY
Product #: TLD-051-1001
Mfg #: R0492300
6
6
R0492700
TLD-051-1903
Product #: TLD-051-1903
Mfg #: R0492700
N/S
N/S
R0492600
TLD-051-1915
Product #: TLD-051-1915
Mfg #: R0492600
Notes:
Not Shown
N/S
N/S
R0503100
TLD-051-1925
Product #: TLD-051-1925
Mfg #: R0503100
Notes:
Not Shown
