Hayward

30" HCF Series Gel Coated Commercial Sand Filter 2" Flanged

Product #:CHT-05-1004

Mfg. Part #:HCF302T

  • This product is obsolete.
  • The superceded product was not found.

Hayward HCF302T HCF Series 30" Commercial Sand Filter 2" Flanged

Hayward

30" HCF Series Gel Coated Commercial Sand Filter 2" Flanged

Product #:CHT-05-1004

Mfg. Part #:HCF302T

Description

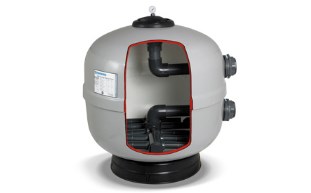

Hayward HCF302T HCF Series 30" Commercial Sand Filter 2" Flanged. Hayward HCF series of filters have been engineered to fit todays demanding applications. Overhead multi-diffuser distribution is combined with a horizontal lateral grid array that improves water distribution over the filter bed resulting in linger filter cycle time, improved filtration, and a more efficient backwash cycle. The twist-lock, tool-free rapid open/close lid mechanism with positive O-Ring seal simplifies operation and ensures long-term durability and reliability.

Branch Availability

content loaded

Specifications

  • BrandHayward
  • ApplicationPool, Spa
  • Shipping Dimensions38 x 38.3 x 54.3 inch
  • Backwash Flow Rate98 gal/min
  • Backwash Min Flow Rate98 gal/min
  • ChannelNone
  • ColorGray
  • Commercial, Residential, or ProfessionalCommercial
  • Each Product Weight185 pound
  • Filtration Area4.9 square feet
  • Filtration Rate20 GPM/ft2
  • Inlet/Outlet Sizes2 inch
  • Inlet/Outlet Sizes FITThreaded
  • Master Carton Quantity1
  • Maximum Working Pressure50 pounds per square inch
  • Minimum Sell Quantity1
  • Product Weight80 pound
  • Side Clearance30 inch
  • Standards ApprovalsANSI Standard 50 Certified
  • Tank ColorGray
  • Vertical Clearance42.5 inch
  • UPC Code0610377190046

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

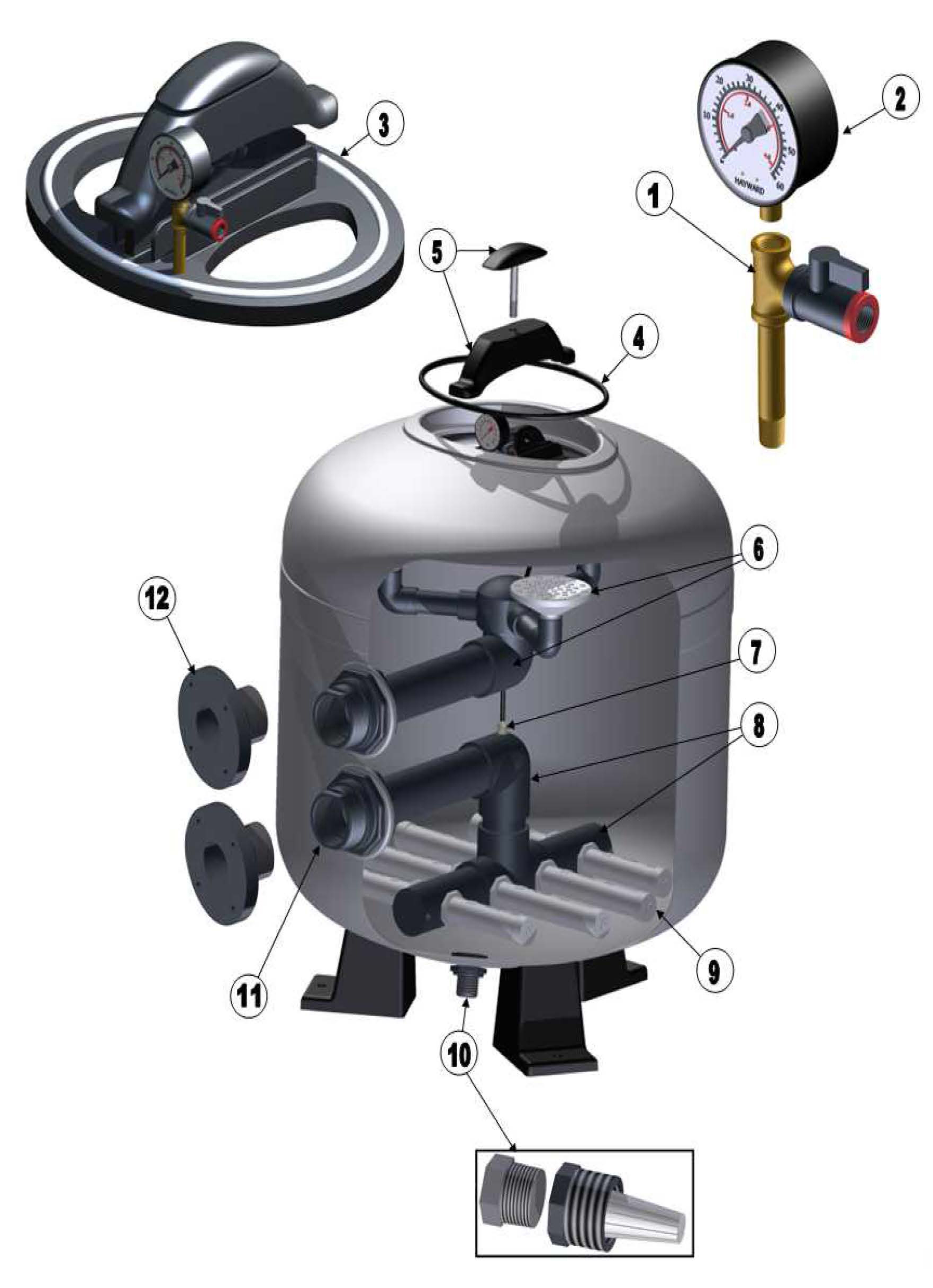

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
1
1
HCXFARV1000
HAY-051-9848
Product #: HAY-051-9848
Mfg #: HCXFARV1000
2
2
HCXFPGB1000
HAY-051-9821
Product #: HAY-051-9821
Mfg #: HCXFPGB1000
3
3
HCXFMWC1000
HAY-051-9873
HCXFMWC1000 MANWAY COVER ASSY
Product #: HAY-051-9873
Mfg #: HCXFMWC1000
4
4
HCXFMCG1000
HAY-051-9842
Product #: HAY-051-9842
Mfg #: HCXFMCG1000
5
5
HCXFMWY1000
Manway Cover Yoke & Knob Assy
Product #:
Mfg #: HCXFMWY1000
6
6
HCXFDMA1000
HAY-051-9910
HCXFDMA1000 DISTRIBUTION MANIFOLD ASSY
Product #: HAY-051-9910
Mfg #: HCXFDMA1000
7
7
HCXFARA1000
HAY-051-9862
HCXFARA1000 INTERNAL AIR RELIEF ASSY
Product #: HAY-051-9862
Mfg #: HCXFARA1000
8
8
HCXFCMA1000
HAY-051-9913
Product #: HAY-051-9913
Mfg #: HCXFCMA1000
9
9
HCXFCLK1000
HAY-051-9889
HCXFCLK1000 LATERAL KIT
Product #: HAY-051-9889
Mfg #: HCXFCLK1000
10
10
HCXFDFA1000
HAY-051-9877
HCXFDFA1000 DRAIN FITTING ASSY
Product #: HAY-051-9877
Mfg #: HCXFDFA1000
11
11
HCXFBFA1000
HAY-051-9850
Product #: HAY-051-9850
Mfg #: HCXFBFA1000

Wholegoods

There are no wholegoods available.
