Brands
Pentair

Automatic Commercial High Capacity Chlorinator

Product #:RAI-45-1008

Mfg. Part #:R171240


Pentair Rainbow™ R171240 HC-3340 Automatic Commercial High Capacity Chlorinator for Chlorine or Bromine Tablets, 1 per Carton

Pentair

Automatic Commercial High Capacity Chlorinator

Product #:RAI-45-1008

Mfg. Part #:R171240

Description

Rainbow™ high capacity feeders are one of the easiest ways to sanitize large residential and commercial swimming pools using either chlorine or bromine slow dissolve tablets. These heavy-duty, high capacity feeders provide automatic sanitization for pools up to 658500 gal. They are designed for off-line plumbing installations using 1 Inch PVC pipe and are available in three sizes to fit a variety of pool applications

Documents

Feature Bullets

  • Extra large capacity models
  • No special venting required
  • Completely enclosed - no escaping gases
  • Positive external no-clog control valve
  • No equipment damage and feeds sanitizer directly to pool
  • Designed for ease of use and simple maintenance
  • Drain valve allows easier draining for safer recharging or winterizing
  • Standard threaded inlet and outlet fittings included for easy installation
  • 51 Inch maintenance clearance
  • 658500 gal chlorine maximum pool size at 34 gpm
  • 292600 gal bromine maximum pool size at 34 gpm
  • Treats 332000 gal with trichlor
  • Heavy duty control valve for accurate feed rate adjustment
  • Flow through circulation allows maximum output of sanitized water
  • Screen and check ball are easy to reach for cleaning and periodic maintenance
  • Lock ring spins off
  • freeing lid and providing easy access. Snap-lock provides secure seal
  • 1-Year warranty

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • ApplicationPool
    • Shipping Dimensions51.25 x 8 x 8 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight13.4 pound
    • Flow Rate Max11.5 gal/min
    • Flow Rate Min11.5 gal/min
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Pressure Rating Max50 pounds per square inch
    • Pressure Rating Min50 pounds per square inch
    • Standards ApprovalsNSF Certified
    • UPC Code788379015008

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

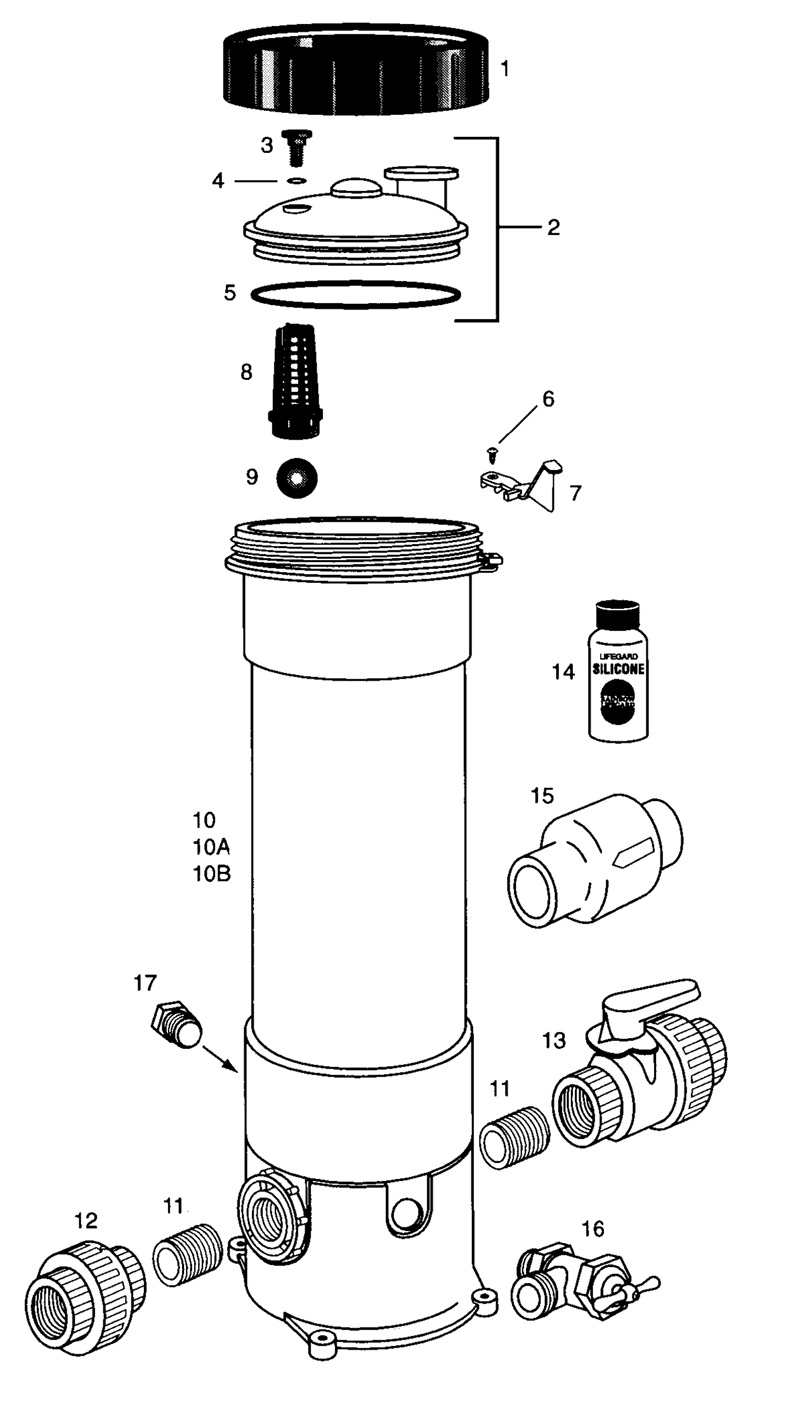

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R172214
    RAI-051-3475
    Predator II Lock Ring
    Product #: RAI-051-3475
    Mfg #: R172214
    2
    2
    R172385D
    RAI-051-4011
    Lid Asy Hc Series
    Product #: RAI-051-4011
    Mfg #: R172385D
    3
    3
    R172224XZ
    RAI-051-3465
    Black Drain Vent Valve
    Product #: RAI-051-3465
    Mfg #: R172224XZ
    4
    4
    R172221Z
    RAI-051-3479
    O-Ring for Rainbow™ Dynamic® Series Drain and Vent Valve
    Product #: RAI-051-3479
    Mfg #: R172221Z
    4
    4
    O-30-9-10
    SPG-601-1151
    O-30-9-10 R172221Z ECX9611246 ORING 10PK DRAIN & VENT VLV
    Product #: SPG-601-1151
    Mfg #: O-30-9-10
    4
    4
    O-30-9
    SPG-601-1279
    Air Relief Valve O-Ring
    Product #: SPG-601-1279
    Mfg #: O-30-9
    5
    5
    R172240
    RAI-451-4001
    Oring Specl #O-359 Viton
    Product #: RAI-451-4001
    Mfg #: R172240
    5
    5
    AXW542
    ARN-201-8724
    Leaf Canister O-Ring
    Product #: ARN-201-8724
    Mfg #: AXW542
    5
    5
    CX120D
    HAY-051-1748
    Micro StarClear™ Filter Body O-Ring
    Product #: HAY-051-1748
    Mfg #: CX120D
    5
    5
    R172223
    RAI-051-3478
    Cart Filter Lid to Housing O-Ring
    Product #: RAI-051-3478
    Mfg #: R172223
    5
    5
    16920-0012
    SWQ-101-3843
    Plastic Suction Trap Assembly O-Ring #2-359
    Product #: SWQ-101-3843
    Mfg #: 16920-0012
    5
    5
    R0558800
    TLD-101-5043
    Hardware Set for JHP/PHP Series Pumps
    Product #: TLD-101-5043
    Mfg #: R0558800
    5
    5
    O-330-9
    SPG-601-1161
    O-Ring for Leaf Canister and Chemical Feeder Lid
    Product #: SPG-601-1161
    Mfg #: O-330-9
    6
    6
    R172375
    RAI-051-3491
    #6 x3/8" Phillips Truss Head Screw
    Product #: RAI-051-3491
    Mfg #: R172375
    7
    7
    R172374
    RAI-051-3490
    Lock Spring
    Product #: RAI-051-3490
    Mfg #: R172374

    Wholegoods

    There are no wholegoods available.
