Convertible Jet Pump 1/2HP 115-230V

Product #:GOU-10-1004

Mfg. Part #:J5

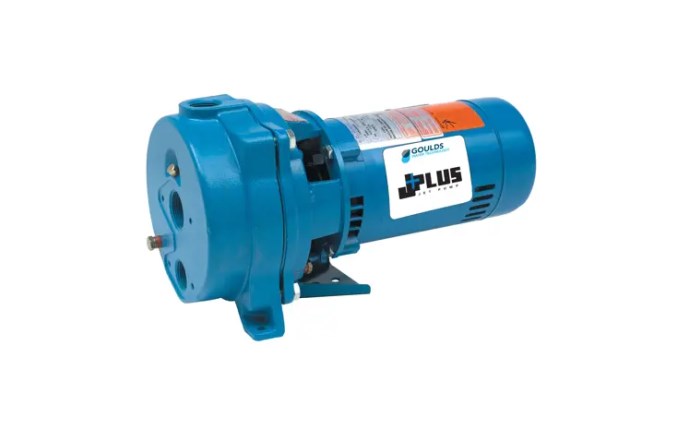

Goulds J5 Convertible Jet Pump 1/2HP 115-230V

Goulds

Convertible Jet Pump 1/2HP 115-230V

Product #:GOU-10-1004

Mfg. Part #:J5

EA

Description

The J+ is a convertible jet pump, allowing it to be used in a shallow well application or a deep well application depending on which adapter is used. With HP options from 1/2 to 1 1/2, this pump is designed for use in homes, farms, cottages, and booster services.

Documents

Feature Bullets

  • Convertible: May be used on shallow or deep well applications using appropriate Goulds Water Technology fittings
  • Compact design has an integral shallow well jet built into the casing, which eliminates the need for a separate shallow well adapter
  • Excellent air-handling ability after the initial priming further allows the pump to re-prime itself
  • Corrosion resistant
  • Powered for continuous operation

    • Branch Availability

    content loaded

    Specifications

    • BrandGoulds
    • ApplicationLandscaping, Agriculture, Irrigation
    • Shipping Dimensions23 x 10 x 11 inch
    • ChannelConstruction Channel
    • Commercial, Residential, or ProfessionalCommercial, Residential
    • Discharge Size1 inch
    • Discharge Size FITNPT
    • Each Product Weight44 pound
    • Frequency Rating (Hz)60
    • Horsepower0.5 horse power
    • Minimum Sell Quantity1
    • PhaseSingle
    • RPMs Max3500
    • Suction Size1.25 inch
    • Voltage115V, 230V
    • Warranty - General1 years
    • Suction Size FITNPT
    • UPC Code697666006400

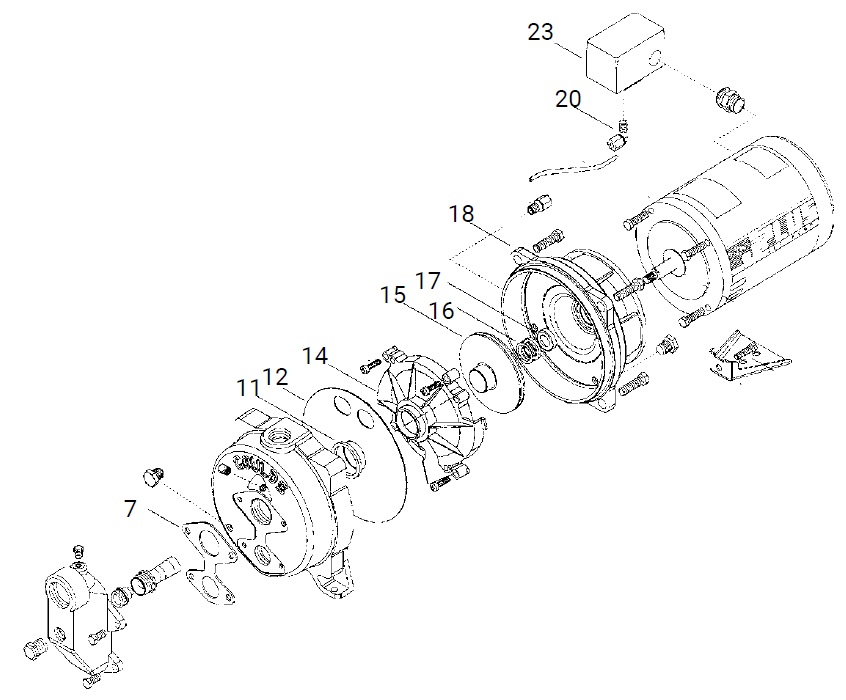

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    7
    7
    5K108
    Gasket
    Product #:
    Mfg #: 5K108
    Notes:
    BUNA - FDS/NSF
    11
    11
    5K555
    GOU-101-1027
    Guide Vane Seal Ring for Pumps
    Product #: GOU-101-1027
    Mfg #: 5K555
    Notes:
    BUNA - FDS/NSF, Included with repair kit
    12
    12
    5K557
    GOU-101-1020
    Casing Gasket for JL Pumps
    Product #: GOU-101-1020
    Mfg #: 5K557
    Notes:
    BUNA - FDS/NSF, Included with repair kit
    14
    14
    3K75
    Diffuser (Guidevane)
    Product #:
    Mfg #: 3K75
    Notes:
    Glass filled engineered composite 10% G.F., Included with repair kit
    15
    15
    2K4
    GOU-101-1003
    Impeller for J5, J5H, J5S and J5SH Pumps
    Product #: GOU-101-1003
    Mfg #: 2K4
    Notes:
    Glass filled engineered composite 20% G.F., Included with repair kit
    16
    16
    10K258
    Mechanical Seal, Rotary
    Product #:
    Mfg #: 10K258
    Notes:
    Teeplelite, Included with repair kit
    17
    17
    10K258
    Mechanical Seal, Stationary
    Product #:
    Mfg #: 10K258
    Notes:
    Ceramic, Included with repair kit
    18
    18
    1K310
    Motor Adapter
    Product #:
    Mfg #: 1K310
    Notes:
    Cast Iron
    20
    20
    6K94
    Elbow Connector
    Product #:
    Mfg #: 6K94
    Notes:
    Polypropylene
    23
    23
    AS4
    Pressure Switch
    Product #:
    Mfg #: AS4
