Brands
Jandy

CXi Asme Commercial Heater Liquid Propane 500K BTU

Product #:JDY-15-0007

Mfg. Part #:CXI500PN


Jandy CXI500PN Asme Commercial Heater Liquid Propane 650K BTU with Cal Code 500K BTU

Jandy

CXi Asme Commercial Heater Liquid Propane 500K BTU

Product #:JDY-15-0007

Mfg. Part #:CXI500PN

EA

Description

Jandy CXI500PN Asme Commercial Heater Liquid Propane 650K BTU with Cal Code commercial heater delivers innovation and technology for an efficient, reliable installation. With features such as low NOx operation and proportional firing, these natural gas heaters provide maximum performance in all weather conditions.

Documents

Feature Bullets

  • Comes equipped with Cold Water Protection to prevent condensation from low inlet water temperatures.
  • Automatic water regulation helps maintain optimum inlet temperatures to prolong the life of the heater.
  • Provides dramatically reduced operating costs with a certified 85% efficiency rating
  • Comes with numerous possibilities for placement with eight venting options

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationPool
    • Shipping Dimensions55 x 36 x 26 inch
    • BTU Output500000 British thermal unit
    • ChannelNone
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight523 pound
    • Flow Rate Min55 gal/min
    • Fuel TypePropane
    • Minimum Sell Quantity1
    • Warranty - General1 years
    • UPC Code052337091794

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

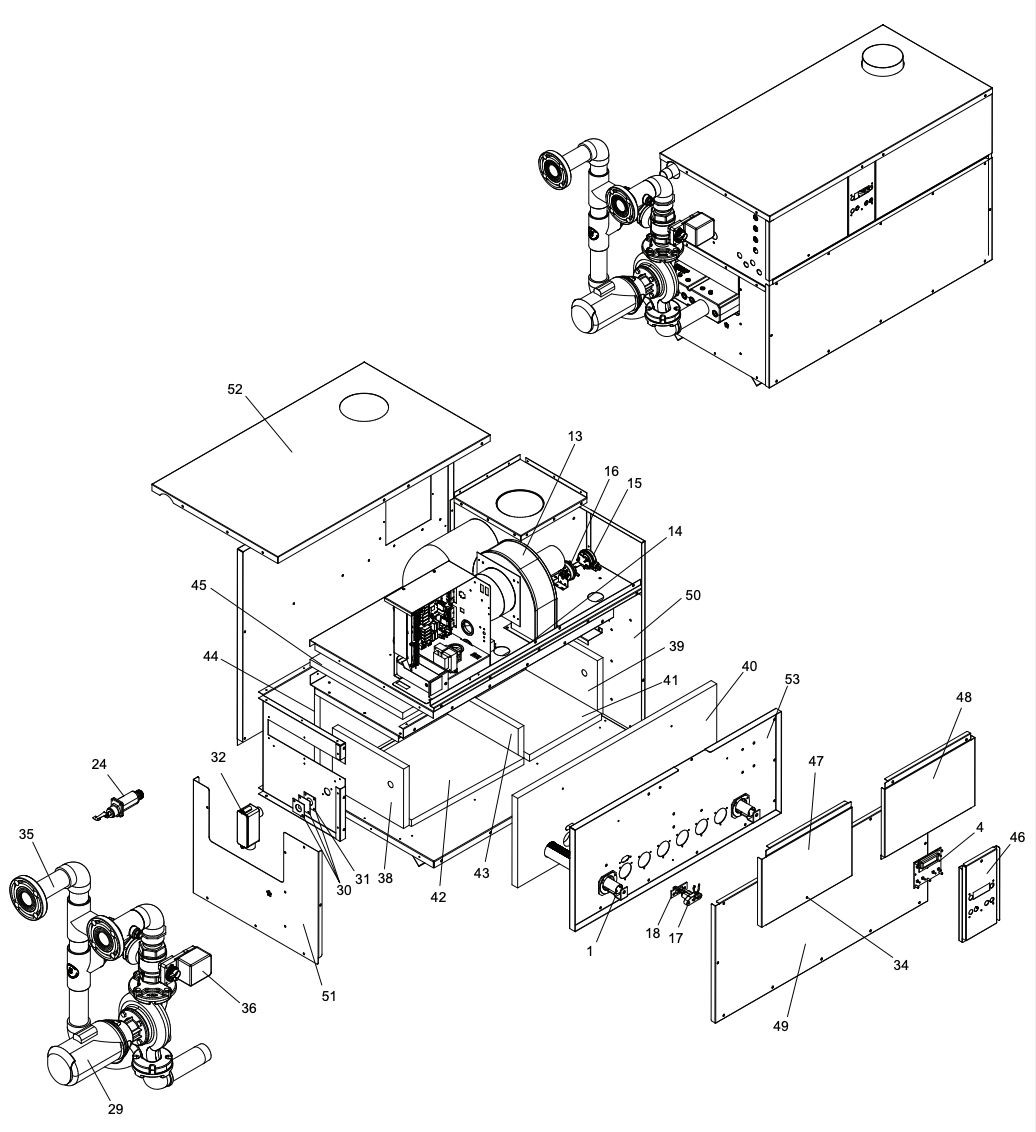

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    100135300
    MAIN BURNER
    Product #:
    Mfg #: 100135300
    Notes:
    Burner Assembly
    1
    1
    100135270
    MAIN BURNER W/ COMPRESSION FITTING
    Product #:
    Mfg #: 100135270
    Notes:
    Burner Assembly
    2
    2
    100208344
    ORIFICE, NATURAL
    Product #:
    Mfg #: 100208344
    Notes:
    Gas Train Assembly
    2
    2
    100208345
    ORIFICE, LP
    Product #:
    Mfg #: 100208345
    Notes:
    Gas Train Assembly
    3
    3
    100208601
    GAS VALVE ASSEMBLY, NATURAL
    Product #:
    Mfg #: 100208601
    Notes:
    Gas Train Assembly
    3
    3
    100208608
    GAS VALVE ASSEMBLY, LP
    Product #:
    Mfg #: 100208608
    Notes:
    Gas Train Assembly
    4
    4
    100208468
    USER INTERFACE CONTROL
    Product #:
    Mfg #: 100208468
    Notes:
    Control Panel Assembly
    5
    5
    100208469
    MAIN CONTROL BOARD
    Product #:
    Mfg #: 100208469
    Notes:
    Control Panel Assembly
    6
    6
    100208475
    CONNECTION BOARD
    Product #:
    Mfg #: 100208475
    Notes:
    Control Panel Assembly
    7
    7
    100167850
    SENSOR BOARD
    Product #:
    Mfg #: 100167850
    Notes:
    Control Panel Assembly
    8
    8
    100208490
    RELAY, 120V, 1.2VA
    Product #:
    Mfg #: 100208490
    Notes:
    Control Panel Assembly
    9
    9
    100208509
    RELAY, 120VAC, 60HZ, 10.8 AMP
    Product #:
    Mfg #: 100208509
    Notes:
    Control Panel Assembly
    10
    10
    100208246
    TRANSFORMER, 24V, 60VA
    Product #:
    Mfg #: 100208246
    Notes:
    Control Panel Assembly
    11
    11
    100208249
    TRANSFORMER, 27.5V, 50VA
    Product #:
    Mfg #: 100208249
    Notes:
    Control Panel Assembly
    12
    12
    100208242
    ON/OFF SWITCH W/ I-O SYMBOL
    Product #:
    Mfg #: 100208242
    Notes:
    Control Panel Assembly

    Wholegoods

    There are no wholegoods available.
