24" SFTM Top Mount Sand Filter with 2" Valve

Product #:TLD-05-1002

Mfg. Part #:SFTM24-2.0


Jandy Pro Series SFTM24-2.0 24" SFTM Top Mount Sand Filter with 2" Valve

Jandy

24" SFTM Top Mount Sand Filter with 2" Valve

Product #:TLD-05-1002

Mfg. Part #:SFTM24-2.0

EA

Description

Jandy Pro Series SFTM24-2.0 24" SFTM Top Mount Sand Filter with 2" Valve is easy to install, simple to maintain. Our Top-Mount Sand Filters are designed with features to make installation easy and filter more water, faster.

Documents

Feature Bullets

  • Large 2" valve for increased flow and enhanced filtration (SFTM24-2.0)
  • 7-position multi-port valve can be rotated to quickly adjust filter mode
  • 360 degrees clamp-style valve rotates for easy installation
  • Laterals fold up/down for quick installation and to service (SFTM24-2.0)
  • Blow-molded tank is corrosion and UV-resistant
  • Combination water/sand drain for easy maintenace and winterizing
  • Unions and adapters included - no need to buy additional parts

    • Branch Availability

    content loaded

    Specifications

    • BrandJandy
    • ApplicationPool
    • Shipping Dimensions24.02 x 24.02 x 48.5 inch
    • Backwash Flow Rate40 gal/min
    • Backwash Min Flow Rate40 gal/min
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight48.5 pound
    • Filtration Area3.04 square feet
    • Maximum Flow Rate60 gal/min
    • Maximum Working Pressure35 pounds per square inch
    • Minimum Sell Quantity1
    • Pallet Quantity4
    • Sand Required300 pound
    • Turnover 8hrs29760 gallon
    • Warranty - General1 years
    • Sand Type Requirements#20 Silica Sand, Size Range 40-55mm
    • UPC Code052337073387

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

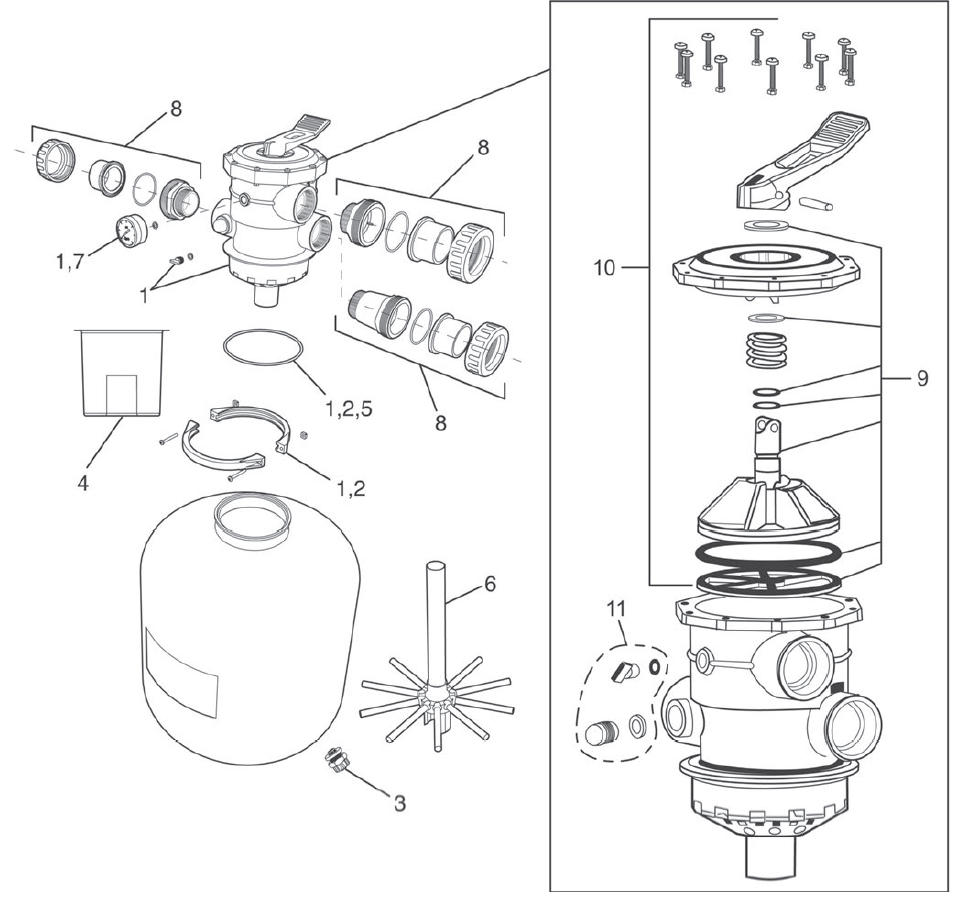

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    R0745700
    TLD-06-1001
    2'' Top Mount Multi-Port Valve
    Product #: TLD-06-1001
    Mfg #: R0745700
    2
    2
    GMX600NM
    HAY-051-2344
    ProSeries™ Flange Valve Clamp
    Product #: HAY-051-2344
    Mfg #: GMX600NM
    2
    2
    R0745100
    TLD-051-1006
    Filter Flange Clamp Assembly and Hardware
    Product #: TLD-051-1006
    Mfg #: R0745100
    2
    2
    27515-154-070
    CTM-061-2770
    HydroSeal™ Replacement Pro Series Flange Clamp
    Product #: CTM-061-2770
    Mfg #: 27515-154-070
    3
    3
    R0745200
    TLD-051-1007
    Drain Cap and O-Ring
    Product #: TLD-051-1007
    Mfg #: R0745200
    4
    4
    R0746100
    TLD-051-1014
    Filter Sand Deflector
    Product #: TLD-051-1014
    Mfg #: R0746100
    5
    5
    R0745800
    TLD-051-1012
    Valve Tank O-Ring
    Product #: TLD-051-1012
    Mfg #: R0745800
    6
    6
    R0746000
    TLD-051-1013
    Lateral and Standpipe Assembly
    Product #: TLD-051-1013
    Mfg #: R0746000
    7
    7
    R0745000
    TLD-051-1005
    Pressure Gauge Assembly with Ring
    Product #: TLD-051-1005
    Mfg #: R0745000
    8
    8
    R0746200
    TLD-051-1015
    Complete 2" Unions with Adapter Kit
    Product #: TLD-051-1015
    Mfg #: R0746200
    9
    9
    R0987500
    TLD-051-5579
    MPV Rebuild Kit
    Product #: TLD-051-5579
    Mfg #: R0987500
    10
    10
    R0987700
    TLD-051-5580
    Top Valve Assembly
    Product #: TLD-051-5580
    Mfg #: R0987700
    11
    11
    R0989300
    TLD-051-5578
    Sight Glass with Plug Kit for Top Mount Sand Filter
    Product #: TLD-051-5578
    Mfg #: R0989300
