Pentair
IntelliProXF® VSF Variable Speed and Flow Pump 3HP 230V
Product #:STA-10-1665
Mfg. Part #:023056
- This product is obsolete.
- The superceded product was not found.
Pentair 023056 IntelliProXF® VSF Variable Speed and Flow Pump 3HP 230V
Pentair
IntelliProXF® VSF Variable Speed and Flow Pump 3HP 230V
Product #:STA-10-1665
Mfg. Part #:023056
Description
The IntelliProXF® VSF pump is the first variable speed and flow pump that adjusts to changes in flow system conditions to maintain its programmed flow rate. With its available performance and efficiency, it is perfectly suited for large and feature rich pools with high flow demand.
Branch Availability
content loaded
Specifications
- BrandPentair
- Amps High Speed16
- Shipping Dimensions28 x 14 x 18 inch
- ApplicationInground, Pool
- ColorBlack
- Each Product Weight60 pound
- Frequency Rating (Hz)50/60
- Horsepower3 horse power
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor SpeedVariable
- Pallet Quantity18
- PhaseSingle
- Product Height14.1 inch
- Product Width11.7 inch
- Service Factor1.32
- Service Factor HP3.95
- Standards ApprovalsEco-Select Certified, Energy Star Certified
- Thrust HP3.95
- Voltage230V
- Wattage3200 watt
- UPC Code788379861629

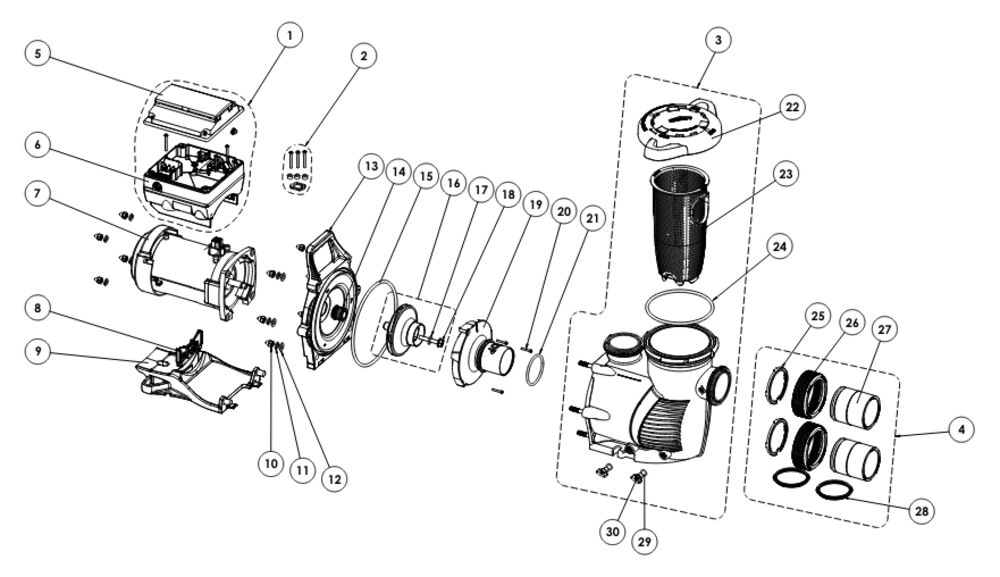

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
352032Z
Drive Kit
Product #:
Mfg #: 352032Z
2
2
355685
Drive Hardware Kit
Product #:
Mfg #: 355685
3
3
401000
Wet End Assembly
Product #:
Mfg #: 401000
4
4
410020
PUR-101-9940
Product #: PUR-101-9940
Mfg #: 410020
5
5
358527Z
PUR-101-3256
Product #: PUR-101-3256
Mfg #: 358527Z
6
6
356898Z
Drive Hardware Kit
Product #:
Mfg #: 356898Z
7
7
350306Z
Motor
Product #:
Mfg #: 350306Z
8
8
357160
Motor Support Insert
Product #:
Mfg #: 357160
9
9
401004Z
Motor Base
Product #:
Mfg #: 401004Z
10
10
71413
Acorn Nut
Product #:
Mfg #: 71413
Notes:
Qty. 1011
11
U43-12SSZ
STA-101-2770
Product #: STA-101-2770
Mfg #: U43-12SSZ
Notes:
Qty. 1012
12
72184
Flat Washer
Product #:
Mfg #: 72184
Notes:
Qty. 613
13
401002
Seal Plate
Product #:
Mfg #: 401002
14
15
15
351446Z
STA-101-2774
Product #: STA-101-2774
Mfg #: 351446Z
Wholegoods
There are no wholegoods available.
