Carvin

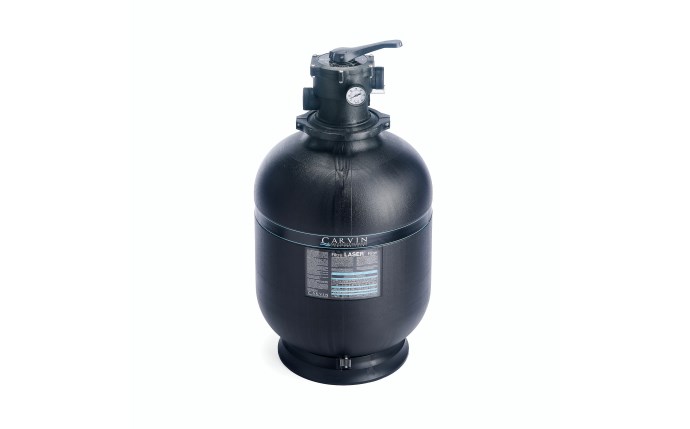

Laser Sand Filter System 1-1/2HP 115V with 3' Power Cord

Product #:JAC-05-9708

Mfg. Part #:94084323


Carvin Laser 94084323 Sand Filter System 1-1/2HP 115V with 3' Power Cord; Model L225C-7-15TSHJ-3P

Carvin

Laser Sand Filter System 1-1/2HP 115V with 3' Power Cord

Product #:JAC-05-9708

Mfg. Part #:94084323

EA

Description

Keep your pool water clear, clean, and inviting with this durable Sand Filter System. Designed to provide efficient filtration and easy operation, it uses specially graded filter sand to trap dirt, debris, and impurities as water circulates through your pool system. The smooth internal design promotes even water flow and optimal filtration performance, while the corrosion resistant tank material ensures long lasting use season after season.

Feature Bullets

  • 7-way dial valve with inspection sight glass, automatic air relief and pressure gauge
  • Non-corrosive resin clamp for simple installation and service of dial valve and filter components
  • Internal ribs in the large strainer basket assure flow, even when filled with leaves and debris
  • Injection-molded, high quality base provides non-corrosive and UV-resistant elevated surface
  • Branch Availability

    content loaded

    Specifications

    • BrandCarvin
    • ApplicationPool
    • Shipping Dimensions29 x 29 x 42 inch
    • ChannelNone
    • ColorBlack
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight145 pound
    • Filtration Area2.64 square feet
    • Minimum Sell Quantity1
    • Sand Required250 pound
    • Filtration Rate290 GPM/ft2
    • Maximum Flow Rate25 gal/min
    • Tank ColorBlack
    • Turnover 6hrs23800 gallon
    • Turnover 8hrs31700 gallon

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

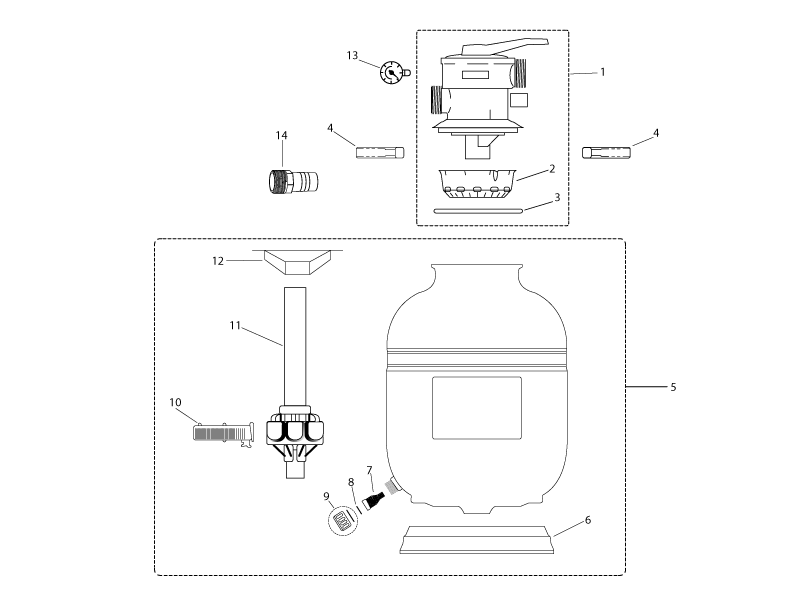

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    39263035K
    LDP-06-1000
    Product #: LDP-06-1000
    Mfg #: 39263035K
    1
    1
    39258900R
    6C Dial Valve-Flanged
    Product #:
    Mfg #: 39258900R
    1
    1
    39000609R
    2" Dial Valve
    Product #:
    Mfg #: 39000609R
    2
    2
    43281145K
    LDP-061-1002
    Product #: LDP-061-1002
    Mfg #: 43281145K
    Notes:
    Before 12-01-2023
    2
    2
    43281146R
    Latching Deflector Basket
    Product #:
    Mfg #: 43281146R
    Notes:
    After 12-01-2023
    3
    3
    47036447R
    LDP-061-1003
    Product #: LDP-061-1003
    Mfg #: 47036447R
    4
    4
    85813903K
    LDP-061-1004
    Product #: LDP-061-1004
    Mfg #: 85813903K
    5
    5
    94082160R
    L160C Laser Tank Assembly
    Product #:
    Mfg #: 94082160R
    5
    5
    94082192R
    L192C Laser Tank Assembly
    Product #:
    Mfg #: 94082192R
    5
    5
    94082225R
    LDP-061-1006
    Product #: LDP-061-1006
    Mfg #: 94082225R
    5
    5
    94082250R
    L250C Laser Tank Assembly
    Product #:
    Mfg #: 94082250R
    6
    6
    85859300R
    Filter Base
    Product #:
    Mfg #: 85859300R
    7
    7
    85853300R
    LDP-061-1005
    Product #: LDP-061-1005
    Mfg #: 85853300R
    8
    8
    14255202R
    LDP-061-1008
    Product #: LDP-061-1008
    Mfg #: 14255202R
    9
    9
    85826300R
    LDP-061-1007
    Product #: LDP-061-1007
    Mfg #: 85826300R

    Wholegoods

    There are no wholegoods available.
