MaxFlo VS™ 500 Variable Speed Pump 1.65HP 115/230V

Product #:HAY-10-0232

Mfg. Part #:SP23520VSP


Hayward SP23520VSP MaxFlo VS™ 500 Variable Speed Pump 1.65HP 115/230V, Expert Line

Hayward

MaxFlo VS™ 500 Variable Speed Pump 1.65HP 115/230V

Product #:HAY-10-0232

Mfg. Part #:SP23520VSP

Description

The MaxFlo VS™ 500 Variable Speed Pump built with dual voltage capability, is the newest addition to the MaxFlo™ pump family that provides up to 80% energy savings over single speed pumps. MaxFlo VS™ 500 is an easy drop-in upgrade that will provide years of powerful performance.

Documents

Feature Bullets

  • Upgraded dual voltage motor drive that maintains optimal operating efficiency; Can operate in stand alone mode or connect to any automation system; Extended life Viton pump seal provides improved resistance against chemical imbalances; Intuitive control pad can be rotated in four directions on the pump or removed and wall mounted; Designed to replace most medium head pumps up to 1.65 total HP

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationInground, Pool, Spa
    • Shipping Dimensions27.6 x 11.8 x 15.8 inch
    • ChannelPool Equipmenrt
    • ColorBlack
    • Each Product Weight45 pound
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Horsepower1.65 horse power
    • Minimum Sell Quantity1
    • Motor SpeedVariable
    • Pallet Quantity15
    • Product Height11.16 inch
    • Product Width9.69 inch
    • RPMs Max3450
    • RPMs Min600
    • Standards ApprovalsEnergy Star Certified, cULus Certified
    • Voltage115V, 230V
    • UPC Code0610377339384

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

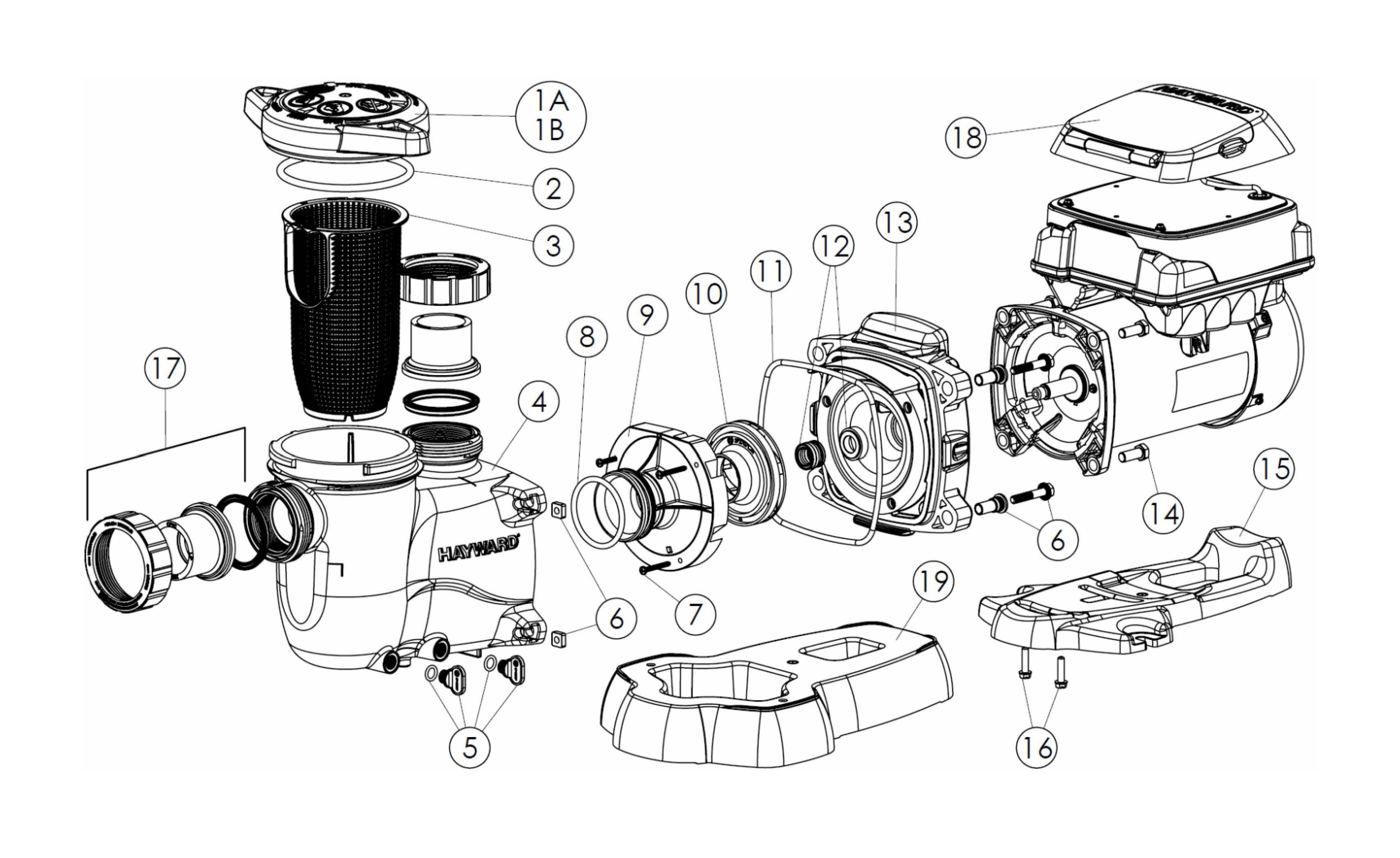

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1A
    1A
    SPX2300DLS
    HAY-101-2300
    Strainer Cover Kit for MaxFlo Pump
    Product #: HAY-101-2300
    Mfg #: SPX2300DLS
    Notes:
    Includes: Strainer Cover, Lock-Ring, O-Ring
    1B
    1B
    SPX2300DLSB
    HAY-101-2301
    SPX2300DLSB MAXFLO BIGUANIDE STRAINER COVER KIT
    Product #: HAY-101-2301
    Mfg #: SPX2300DLSB
    Notes:
    Includes:Strainer Cover, Lock-Ring, O-Ring (NOT Pressure Testable)
    2
    2
    SPX2300Z4
    HAY-101-2302
    Strainer Cover O-Ring for MaxFlo XL Pump
    Product #: HAY-101-2302
    Mfg #: SPX2300Z4
    3
    3
    SPX2300M
    HAY-101-2303
    Strainer Basket for MaxFlo XL Pump
    Product #: HAY-101-2303
    Mfg #: SPX2300M
    4
    4
    SPX2300AA
    HAY-101-2304
    Pump Housing Strainer with Drain Plugs for MaxFlo Pump
    Product #: HAY-101-2304
    Mfg #: SPX2300AA
    5
    5
    SPX4000FG
    HAY-101-1402
    1/4" Drain Plug with O-Ring
    Product #: HAY-101-1402
    Mfg #: SPX4000FG
    5
    5
    O-25-9
    SPG-601-5491
    Blue White/Doughboy®/Hayward®/Pac Fab/Sta-Rite®®/Saurerman O-Ring
    Product #: SPG-601-5491
    Mfg #: O-25-9
    5
    5
    O-25-9-10
    SPG-601-1136
    O-25-9-10 10/PK ORING AIR BLEEDER ADAPTER
    Product #: SPG-601-1136
    Mfg #: O-25-9-10
    5
    5
    154661Z
    PAC-051-2844
    Triton® II Air Bleeder Adapter O-Ring
    Product #: PAC-051-2844
    Mfg #: 154661Z
    5
    5
    805-0111
    WWP-101-0111
    805-0111 EXECUTIVE WET END ORING
    Product #: WWP-101-0111
    Mfg #: 805-0111
    6
    6
    SPX2700ZPAK
    HAY-101-2726
    SPX2700ZPAK MAXFLO II PUMP HARDWARE PACK
    Product #: HAY-101-2726
    Mfg #: SPX2700ZPAK
    Notes:
    (Includes: 4 Housing Bolts, Seal-Plate Spacers & Square Nuts
    7
    7
    SPX2300Z3PAK3
    HAY-101-2305
    Diffuser Screw 3 Pack for MaxFlo Pumps
    Product #: HAY-101-2305
    Mfg #: SPX2300Z3PAK3
    8
    8
    SX220Z2
    HAY-051-8242
    SwimClear™/ProGrid™ Vertical Grid DE Bulkhead O-Ring
    Product #: HAY-051-8242
    Mfg #: SX220Z2
    8
    8
    O-649-9
    SPG-601-1298
    Swimclear/ Progrid Bulkhead O-Ring
    Product #: SPG-601-1298
    Mfg #: O-649-9
    9
    9
    SPX2300B
    HAY-101-2306
    Diffuser for MaxFlo XL Pump
    Product #: HAY-101-2306
    Mfg #: SPX2300B
