Super II™ 1-Speed Energy Efficient High Performance Pump 2 HP 230V

Product #:HAY-10-374

Mfg. Part #:SP3020EEAZ

  • This product is obsolete.
  • The superceded product was not found.

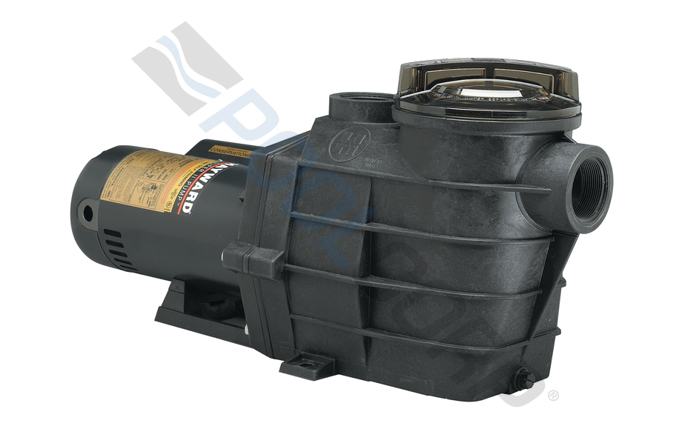

Hayward Super II™ SP3020EEAZ Super II™ 1-Speed Energy Efficient High Performance Pump 2 HP 115/230V

Hayward

Super II™ 1-Speed Energy Efficient High Performance Pump 2 HP 230V

Product #:HAY-10-374

Mfg. Part #:SP3020EEAZ

Description

Hayward Super II™ SP3020EEAZ Super II™ 1-Speed Energy Efficient High Performance Pump 2 HP 115/230V. The Hayward Super II Pump is specifically engineered for the demanding requirements of today’s in-ground swimming pool/spa that is equipped with large capacity filters, heaters, and pool cleaning equipment. The Super II is a self-priming pump that incorporates an improved seal and impeller design that will provide many years of efficient, dependable, corrosion-free service. The advanced design provides superior performance while reducing maintenance requirements.

Documents

Feature Bullets

  • Full-flow hydraulics allow greater flow at a lower cost of operation
  • See-through strainer cover lets you see when basket needs cleaning and eliminates guesswork and 155 cubic Inch basket has rigid construction including load-extender ribbing for free-flowing operation
  • Service-ease design allows simple access to all internal parts
  • Motor and entire drive group assembly can be removed, without disturbing pipe or mounting connections, by disengaging just six bolts
  • Heavy-duty, high performance motor with airflow ventilation for quieter, cooler operation
  • Totally balanced, Noryl® high-head impeller provides high-volume output to accommodate even the most demanding
  • installations, including pool/spa combinations and in-floor cleaning systems
  • Uni-bracket mounting base provides stable, stress-free support, plus versatility for any installation requirement and adapts 48- and 56-frame motors
  • Heat-resistant, industrial-size ceramic seal is long-wearing and drip proof
  • Self-priming capability
  • Energy efficient

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Amps High Speed15
    • Shipping Dimensions31 x 11 x 14 inch
    • Amps Low Speed15
    • ApplicationFountains, Inground, Pool, Spa
    • ChannelPool Equipment
    • ColorBlack, Gold
    • Discharge Size2 inch
    • Each Product Weight48 pound
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Horsepower2 horse power
    • Master Carton Quantity1
    • Max Working Pressure40 pounds per square inch
    • Minimum Sell Quantity1
    • Motor RatingFull-Rated
    • Motor Speed1-Speed
    • Pallet Quantity18
    • Product Height12.1875 inch
    • Product Width9.375 inch
    • Service Factor1.25
    • Standards ApprovalsNSF Certified, UL Certified, CSA Certified
    • Suction Size2 inch
    • Thrust HP2.5
    • Voltage230V
    • Impeller MaterialResin
    • Product Depth23.875 inch
    • UPC Code0610377294300

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

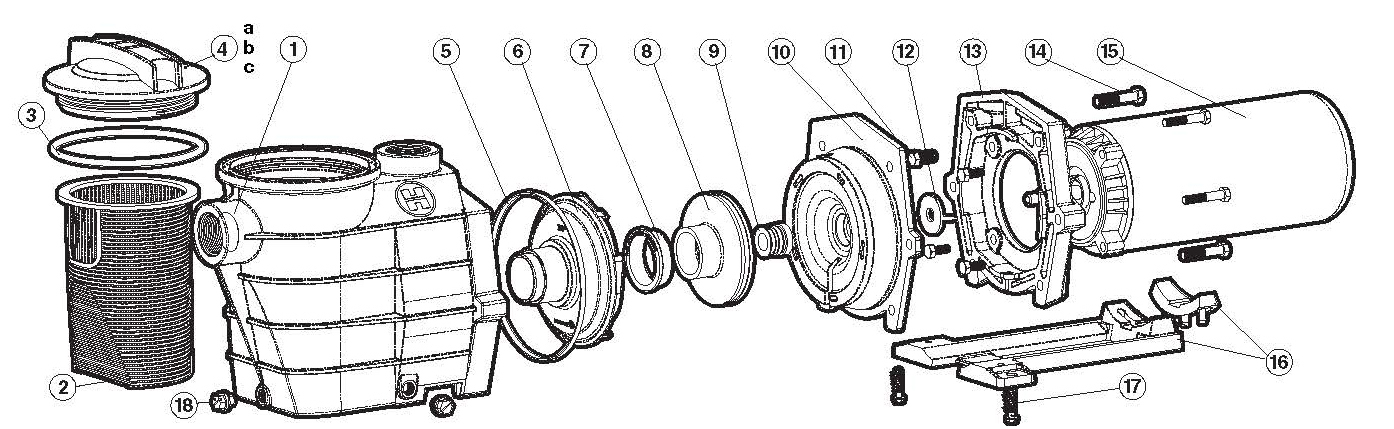

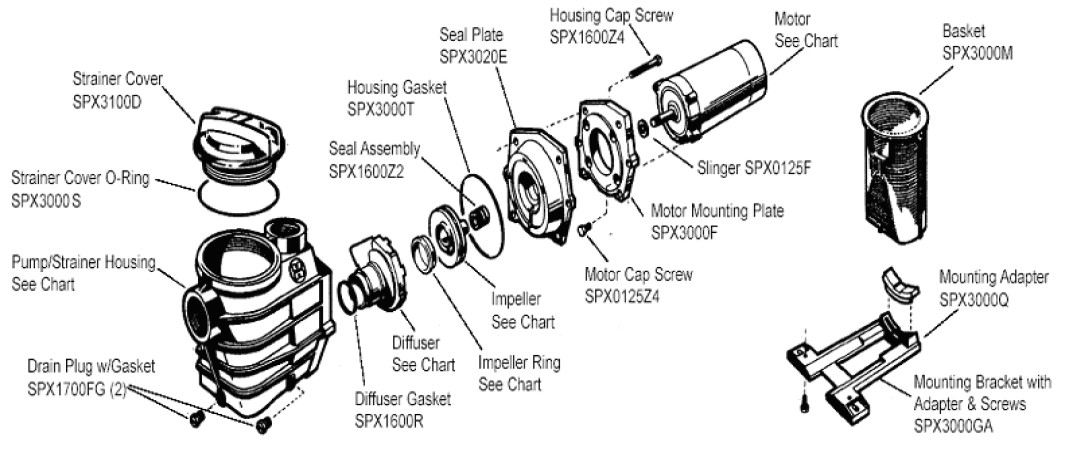

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    -
    -
    SPX1700FG
    HAY-101-2034
    1/4" Drain Plug with Gasket
    Product #: HAY-101-2034
    Mfg #: SPX1700FG
    Notes:
    2 Required
    -
    -
    SPX3120AAZ
    HAY-101-1409
    Threaded Pump Housing Strainer with 2" Ports & Drain Plugs for Super II Pump
    Product #: HAY-101-1409
    Mfg #: SPX3120AAZ
    -
    -
    SPX3000S
    HAY-101-2066
    Strainer Cover O-Ring for Super II Pump
    Product #: HAY-101-2066
    Mfg #: SPX3000S
    -
    -
    O-12-9
    SPG-601-1094
    Max-E-Glas II/ Super II Strainer Cover O-Ring
    Product #: SPG-601-1094
    Mfg #: O-12-9
    -
    -
    O-12-14
    ALA-601-2171
    ORING
    Product #: ALA-601-2171
    Mfg #: O-12-14
    -
    -
    35505-1440Z
    STA-101-1440
    6.35" x 6.9" Trap Cover O-Ring
    Product #: STA-101-1440
    Mfg #: 35505-1440Z
    -
    -
    U9-375Z
    STA-101-7462
    8.5" Trap Cover O-Ring
    Product #: STA-101-7462
    Mfg #: U9-375Z
    -
    -
    SPX3100D
    HAY-101-5622
    Threaded Style Strainer Cover for Super II Pump
    Product #: HAY-101-5622
    Mfg #: SPX3100D
    -
    -
    HWPL100
    SPG-101-5621
    Hayward Super II Threaded Style Strainer Cover
    Product #: SPG-101-5621
    Mfg #: HWPL100
    -
    -
    SPX1600Z2
    HAY-101-2020
    Shaft Seal Assembly for Super Pump and MaxFlo Pumps
    Product #: HAY-101-2020
    Mfg #: SPX1600Z2
    -
    -
    201
    SPG-60-0201
    PS201 Shaft Seal Assembly
    Product #: SPG-60-0201
    Mfg #: 201
    -
    -
    AS-1521
    ALA-60-5020
    PS201 SHAFT SEAL
    Product #: ALA-60-5020
    Mfg #: AS-1521
    -
    -
    071728
    PUR-101-3430
    Replacement Pump Seal Set
    Product #: PUR-101-3430
    Mfg #: 071728
    -
    -
    PS201
    USS-60-5022
    .75" GENERAL SERVICE SEAL ASSY
    Product #: USS-60-5022
    Mfg #: PS201
    -
    -
    37400-0027S
    STA-101-1470
    Buna Shaft Seal
    Product #: STA-101-1470
    Mfg #: 37400-0027S
