Brands
Hayward

Super II™ Pump 3HP 240/415V

Product #:HAY-10-700

Mfg. Part #:SP303053

  • This product is obsolete.
  • The superceded product was not found.

Hayward Super II™ SP303053 Pump 3HP 240/415V

Hayward

Super II™ Pump 3HP 240/415V

Product #:HAY-10-700

Mfg. Part #:SP303053

Description

For new construction and the aftermarket, Super II™ is the reliable pool pump that offers high performance capabilities as an upgrade path for medium head pumps.

Documents

Feature Bullets

  • All components molded of corrosion-proof reinforced thermoplastic for extra durability and long life
  • See-through strainer cover lets you see when basket needs cleaning and eliminates guesswork
  • Rugged, one-piece housing with full-flow ports, ensures rapid priming and continuous operation
  • Corrosion-proof impeller provides high-volume output to accommodate even the most demanding installations, including pool/spa combinations and in-floor cleaning systems
  • Heat-resistant, industrial-size ceramic seal is long-wearing
  • Heavy-duty, high performance motor with airflow ventilation for quieter, cooler operation
  • Uni-bracket mounting base provides stable, stress-free support, plus versatility for any installation requirement and adapts 48- and 56-frame motors
  • Service-ease design allows simple access to all internal parts
  • Motor and entire drive group assembly can be removed, without disturbing pipe or mounting connections, by disengaging just six bolts

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationFountains, Inground, Pool, Spa
    • Shipping Dimensions31 x 11 x 14 inch
    • ChannelPool Equipmenrt
    • Each Product Weight56 pound
    • Frequency Rating (Hz)50
    • Horsepower3 horse power
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Motor RatingMax-Rated
    • Pallet Quantity18
    • PhaseThree
    • Service Factor1
    • Voltage220V, 240V
    • UPC Code0610377407748

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

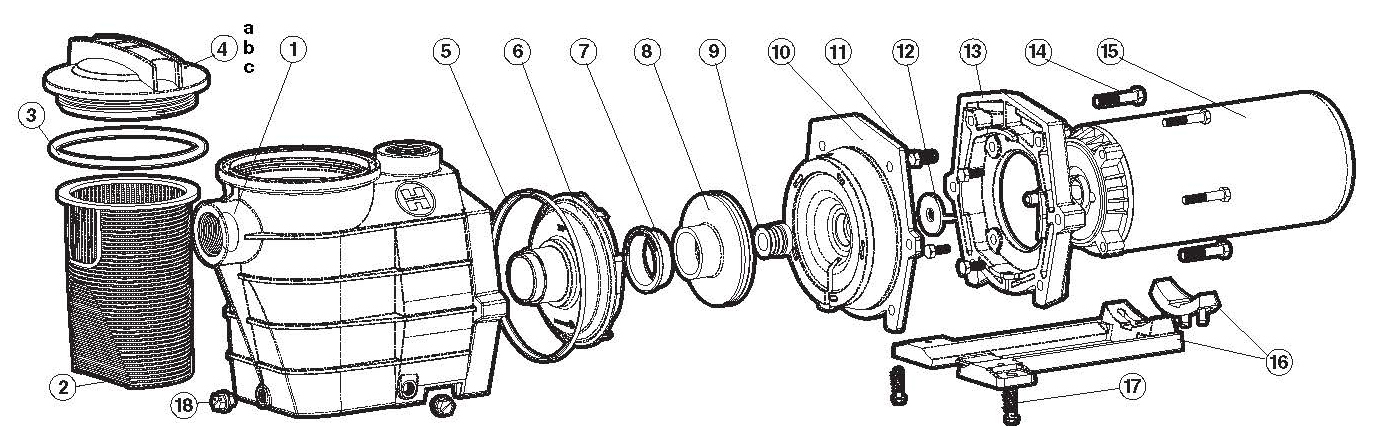

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    SPX3000AA
    HAY-101-2057
    1 1/2" Super II Knob Lid Pump Housing Strainer
    Product #: HAY-101-2057
    Mfg #: SPX3000AA
    1
    1
    SPX3100AAZ
    HAY-101-1210
    1 1/2" Super II Pump Housing Strainer
    Product #: HAY-101-1210
    Mfg #: SPX3100AAZ
    1
    1
    SPX3020AA
    HAY-101-2073
    Pump Housing Strainer with 2" Ports and Drain Plugs for Super II Pump
    Product #: HAY-101-2073
    Mfg #: SPX3020AA
    1
    1
    SPX3120AAZ
    HAY-101-1409
    Threaded Pump Housing Strainer with 2" Ports & Drain Plugs for Super II Pump
    Product #: HAY-101-1409
    Mfg #: SPX3120AAZ
    2
    2
    SPX3000M
    HAY-101-2064
    Strainer Basket for Super II Pump
    Product #: HAY-101-2064
    Mfg #: SPX3000M
    2
    2
    B-207
    SPG-601-0207
    Hayward Super II Pump Strainer Basket
    Product #: SPG-601-0207
    Mfg #: B-207
    2
    2
    R38011
    RAI-60-2108
    Strainer Basket 3000M
    Product #: RAI-60-2108
    Mfg #: R38011
    3
    3
    SPX3000S
    HAY-101-2066
    Strainer Cover O-Ring for Super II Pump
    Product #: HAY-101-2066
    Mfg #: SPX3000S
    3
    3
    O-12-9
    SPG-601-1094
    Max-E-Glas II/ Super II Strainer Cover O-Ring
    Product #: SPG-601-1094
    Mfg #: O-12-9
    3
    3
    O-12-14
    ALA-601-2171
    ORING
    Product #: ALA-601-2171
    Mfg #: O-12-14
    3
    3
    35505-1440Z
    STA-101-1440
    6.35" x 6.9" Trap Cover O-Ring
    Product #: STA-101-1440
    Mfg #: 35505-1440Z
    3
    3
    U9-375Z
    STA-101-7462
    8.5" Trap Cover O-Ring
    Product #: STA-101-7462
    Mfg #: U9-375Z
    4a
    4a
    SPX3000D
    HAY-101-2060
    Hand Knob Style Strainer Cover for Super II Pump
    Product #: HAY-101-2060
    Mfg #: SPX3000D
    4b
    4b
    SPX3100D
    HAY-101-5622
    Threaded Style Strainer Cover for Super II Pump
    Product #: HAY-101-5622
    Mfg #: SPX3100D
    4b
    4b
    HWPL100
    SPG-101-5621
    Hayward Super II Threaded Style Strainer Cover
    Product #: SPG-101-5621
    Mfg #: HWPL100

    Wholegoods

    There are no wholegoods available.
