TriStar VS 900 Pump with OmniX 1.85 HP

Product #:HAY-10-1051

Mfg. Part #:SP32900VSPX1

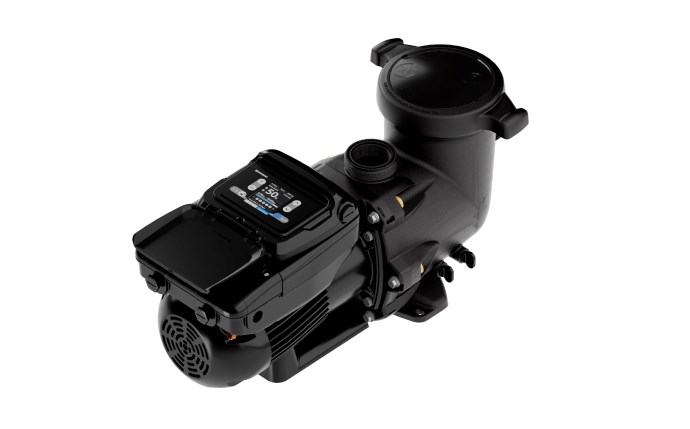

Hayward TriStar SP32900VSPX1 VS 900 Pump with OmniX 1.85 HP

Hayward

TriStar VS 900 Pump with OmniX 1.85 HP

Product #:HAY-10-1051

Mfg. Part #:SP32900VSPX1

EA

Description

Hayward TriStar VS ultra-high efficiency pool pumps are the most efficient pumps in their class. At the center is our new Universal Display, delivering a consistent, intuitive control experience across Omni®, OmniX®, and competitive automation systems. With OmniX embedded intelligence, the pump provides enhanced programmability, advanced diagnostics, and seamless remote connectivity.

Documents

Feature Bullets

  • Backwards Compatible OmniX Retrofit Kits available for existing TriStar VS 900 and 950 pumps
  • With the additional OmniX Gateway, control your pool equipment from anywhere to allow for remote access
  • Intuitive User Interface enable quick and simple setup and operation
  • Total Control — Advanced UI delivers simple and intuitive programming, along with the flexibility of Omni or OmniX automation
  • Versatile Display is four-way rotatable and wall-mountable for easy access
  • Advanced hydraulic design delivers superior hydraulic efficiency and performance
  • Side and rear conduit entry accommodate high voltage wiring in tight installations
  • No-rib strainer basket with see-through cover ensures easy debris removal
  • Permanent magnet, totally enclosed fan-cooled motor offers more efficient operation and long-lasting reliability

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool
    • Shipping Dimensions31 x 14.3 x 16.6 inch
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Connection Size 11.5 inch
    • Connection Size 22 inch
    • Each Product Weight56.3 pound
    • Flow Rate Max160 gal/min
    • Flow Rate Min45 gal/min
    • Frequency Rating (Hz)50/60
    • Horsepower1.85 horse power
    • Minimum Sell Quantity1
    • Motor Enclosure TypeTotally Enclosed Fan Cooled
    • Motor SpeedVariable
    • Pallet Quantity12
    • PhaseSingle
    • Thrust HP1.85
    • Voltage115V, 230V
    • Warranty - AdditionalParts - 3 year, Labor - 1 year
    • Weighted Energy Factor (WEF)8.3/12.9
    • UPC Code0610377470612

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

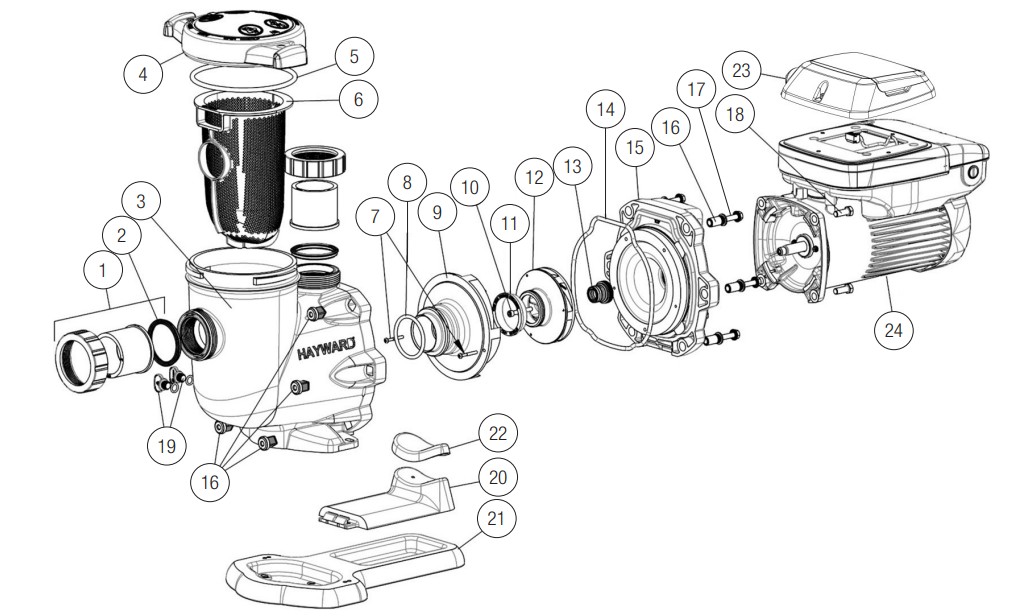

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    HCXP3000UNKIT
    HAY-101-1225
    HCP Pump Union Connector Kit
    Product #: HAY-101-1225
    Mfg #: HCXP3000UNKIT
    Notes:
    Includes 2 Nuts, Connectors, and Gaskets
    2
    2
    HCXP3000UG
    HAY-101-1224
    HCP Pump Union Gasket 2 per Set
    Product #: HAY-101-1224
    Mfg #: HCXP3000UG
    3
    3
    HCXP3000H
    HAY-101-1219
    HCP Pump Strainer Housing with Drain Plug
    Product #: HAY-101-1219
    Mfg #: HCXP3000H
    4
    4
    HCXP3000DLS
    HAY-101-1215
    HCP Pump Strainer Cover Kit
    Product #: HAY-101-1215
    Mfg #: HCXP3000DLS
    Notes:
    Includes Strainer Cover, Lock Ring, and O-Ring
    5
    5
    SPX4000S
    HAY-101-1532
    NorthStar Strainer Cover O-Ring After 2007
    Product #: HAY-101-1532
    Mfg #: SPX4000S
    6
    6
    HCXP3000M
    HAY-101-1220
    HCP Pump Strainer Basket
    Product #: HAY-101-1220
    Mfg #: HCXP3000M
    7
    7
    HCXP343V70
    HAY-101-1244
    Strainer Housing Flange O-Ring for HCP 3000 Series Pump
    Product #: HAY-101-1244
    Mfg #: HCXP343V70
    8
    8
    HCXP3000A
    HAY-101-1212
    Pump Housing with Drain Plug
    Product #: HAY-101-1212
    Mfg #: HCXP3000A
    9
    9
    HCXP338V60
    HAY-101-1243
    Diffuser O-Ring for HCP 3000 Series Pump
    Product #: HAY-101-1243
    Mfg #: HCXP338V60
    10
    10
    SPX3200Z8
    HAY-101-3232
    Diffuser Screw 3 Pack for TriStar Pumps
    Product #: HAY-101-3232
    Mfg #: SPX3200Z8
    Notes:
    5 Pack
    11
    11
    HCXP3000B
    HAY-101-1213
    2-5 HP Diffuser
    Product #: HAY-101-1213
    Mfg #: HCXP3000B
    12
    12
    SPX3200Z1
    HAY-101-3230
    Impeller Screw for TriStar Pump
    Product #: HAY-101-3230
    Mfg #: SPX3200Z1
    13
    13
    HCXP3000R
    HAY-101-1223
    Impeller Ring for 2-5HP HCP 3000 Series Pump
    Product #: HAY-101-1223
    Mfg #: HCXP3000R
    14
    14
    HCXP3020C
    HAY-101-1228
    2HP Impeller with Screw
    Product #: HAY-101-1228
    Mfg #: HCXP3020C
    15
    15
    SPX4000SAV
    HAY-101-1645
    Viton Shaft Seal Assembly
    Product #: HAY-101-1645
    Mfg #: SPX4000SAV
