Hayward

TriStar XL VS Pump with OmniX 2.7 HP

Product #:HAY-10-1054

Mfg. Part #:HCP3020VSPX1

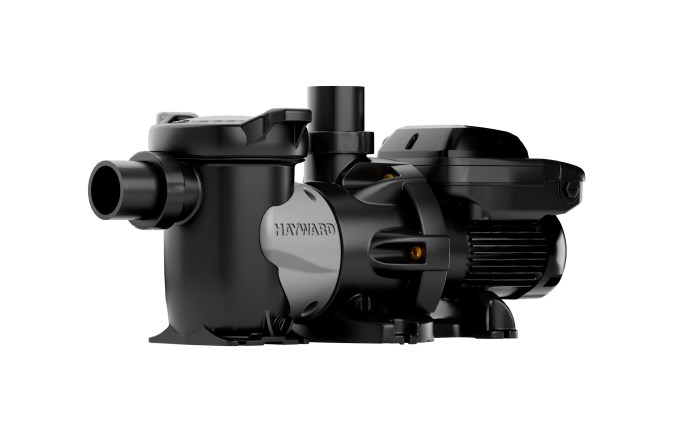

Hayward TriStar HCP3020VSPX1 XL VS Pump with OmniX 2.7 HP

Hayward

TriStar XL VS Pump with OmniX 2.7 HP

Product #:HAY-10-1054

Mfg. Part #:HCP3020VSPX1

EA

Description

The TriStar® XL is a game changer for large residential pools, feature-rich installations, and complex equipment pad configurations. Engineered for performance and flexibility, it delivers increased flow through extra-large three-inch unions, supports more adaptable installations with a removable strainer housing, and reduces maintenance with an oversized strainer basket. At the core is the new integrated Universal Display, providing a simple, intuitive control experience with enhanced programming and advanced diagnostics. Designed to connect seamlessly with Omni®, OmniX®, and competitive automation systems, TriStar XL brings consistent, intelligent control to even the most demanding pool systems.

Feature Bullets

  • Versatile strainer housing and motor can be plumbed separate for complex pool pad configurations
  • Remote pump control with automation to manage speed, scheduling and more
  • Digital interface makes pump control easy, and offers options for rotating or wall mounting to fit your space
  • Includes standard union connections (2.5"" x 3"") that allow for increased flow and easy drop-in replacement
  • Totally enclosed fan-cooled (TEFC) motor offers more efficient operation and long-lasting reliability
  • Chemical-Resistant Viton® Seal offers powerful corrosion protection for long-term durability
  • Total Control: Advanced UI delivers simple and intuitive programming, along with the flexibility of Omni or OmniX automation
  • OmniX Gateway: With the additional OmniX Gateway, control your pool equipment from anywhere to allow for remote access
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationPool
    • Shipping Dimensions38.3 x 18.5 x 19.9 inch
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight75 pound
    • Flow Rate Max160 gal/min
    • Flow Rate Min45 gal/min
    • Horsepower2.7 horse power
    • Minimum Sell Quantity1
    • Motor Enclosure TypeTotally Enclosed Fan Cooled
    • Motor SpeedVariable
    • Pallet Quantity4
    • PhaseSingle
    • Thrust HP2.7
    • Voltage115V, 230V
    • Warranty - AdditionalParts - 3 year, Labor - 1 year
    • Weighted Energy Factor (WEF)7.2/10.0
    • UPC Code0610377470582

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

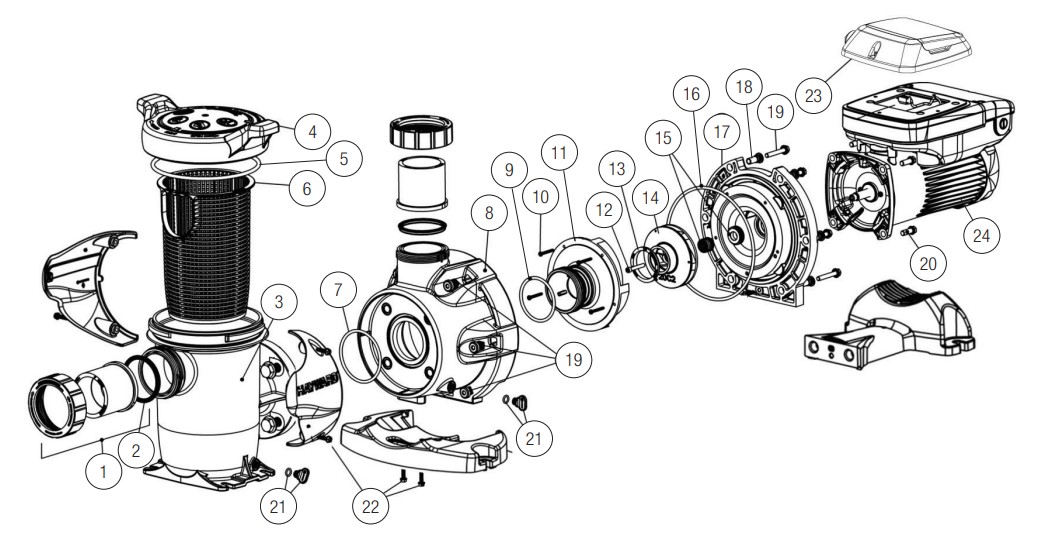

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    HCXP3000UNKIT
    HAY-101-1225
    Product #: HAY-101-1225
    Mfg #: HCXP3000UNKIT
    Notes:
    Includes 2 Nuts, Connectors, and Gaskets
    2
    2
    HCXP3000UG
    HAY-101-1224
    Product #: HAY-101-1224
    Mfg #: HCXP3000UG
    3
    3
    HCXP3000H
    HAY-101-1219
    Product #: HAY-101-1219
    Mfg #: HCXP3000H
    4
    4
    HCXP3000DLS
    HAY-101-1215
    Product #: HAY-101-1215
    Mfg #: HCXP3000DLS
    Notes:
    Includes Strainer Cover, Lock Ring, and O-Ring
    5
    5
    SPX4000S
    HAY-101-1532
    Product #: HAY-101-1532
    Mfg #: SPX4000S
    6
    6
    HCXP3000M
    HAY-101-1220
    Product #: HAY-101-1220
    Mfg #: HCXP3000M
    7
    7
    HCXP343V70
    HAY-101-1244
    Product #: HAY-101-1244
    Mfg #: HCXP343V70
    8
    8
    HCXP3000A
    HAY-101-1212
    Product #: HAY-101-1212
    Mfg #: HCXP3000A
    9
    9
    HCXP338V60
    HAY-101-1243
    Product #: HAY-101-1243
    Mfg #: HCXP338V60
    10
    10
    SPX3200Z8
    HAY-101-3232
    Product #: HAY-101-3232
    Mfg #: SPX3200Z8
    Notes:
    5 Pack
    11
    11
    HCXP3000B
    HAY-101-1213
    Product #: HAY-101-1213
    Mfg #: HCXP3000B
    12
    12
    SPX3200Z1
    HAY-101-3230
    Product #: HAY-101-3230
    Mfg #: SPX3200Z1
    13
    13
    HCXP3000R
    HAY-101-1223
    Product #: HAY-101-1223
    Mfg #: HCXP3000R
    14
    14
    HCXP3020C
    HAY-101-1228
    Product #: HAY-101-1228
    Mfg #: HCXP3020C
    15
    15
    SPX4000SAV
    HAY-101-1645
    Product #: HAY-101-1645
    Mfg #: SPX4000SAV

    Wholegoods

    There are no wholegoods available.
