Hayward
TriVac™ 500 Bottom/Wall In Ground Pressure Side Pool Cleaner
Product #:HAY-20-1007
Mfg. Part #:W3TVP500C
- This product is obsolete.
- The superceded product was not found.

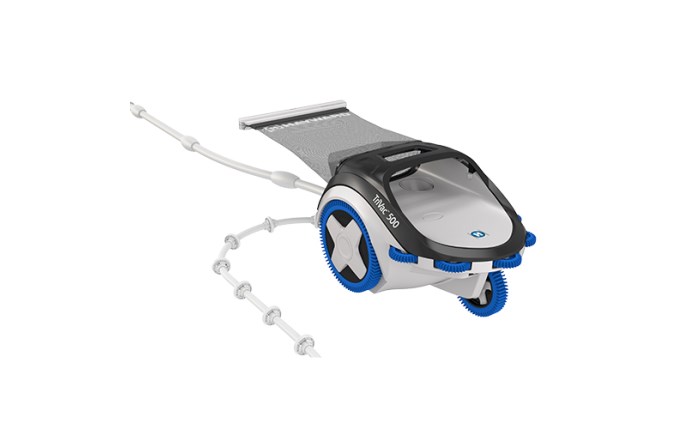

Hayward® TriVac™ 500 W3TVP500C Bottom/Wall In Ground Pressure Side Pool Cleaner
Hayward
TriVac™ 500 Bottom/Wall In Ground Pressure Side Pool Cleaner
Product #:HAY-20-1007
Mfg. Part #:W3TVP500C
Description
Hayward® TriVac™ 500 W3TVP500C Bottom/Wall Pressure Cleaner. TriVac™ 500 pressure cleaner is the ideal cleaner for thoroughly cleaning the pool floor, walls and coves. Equipped with patented AquaDrive® technology- powerful jets that propel the cleaners around the pool—as well as several other exclusive features, including a 40% larger suction inlet and 25% larger debris bag to capture and carry more. Its advanced sweep hose helps cover corners and crevices, ensuring an ultimate, complete clean.
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationInground, Pool
- Shipping Dimensions22.5 x 19.8 x 15.9 inch
- ColorWhite, Gray, Blue
- FinishStandard
- Average BackUp FrequencyEvery 55-65 seconds
- Average BackUp Time5-10 sec
- ChannelPool Equipmenrt
- Cleaner TypeResidential, Pressure, Suction Side
- Cleaning Path Width9 inch
- Cleaning to Backup Ratio90%-10%
- Commercial, Residential, or ProfessionalResidential
- Debris Bag Capacity6 quart
- Drive MechanismAquaDrive(R) technology
- Each Product Weight23 pound
- Hose Length34 foot
- Master Carton Quantity1
- Minimum Sell Quantity1
- Optimal Working Pressure (psi)23
- Pallet Quantity12
- Pool Cleaning FunctionalityCove, Floor, Wall
- Pool SizeUp to 20 ft x 40 ft
- Pool SurfaceFiberglass, Gunite, Pebble, Tile
- Suction Intake Diameter3 inch
- Traction System3 Friction Wheels
- UPC Code0610377390248
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

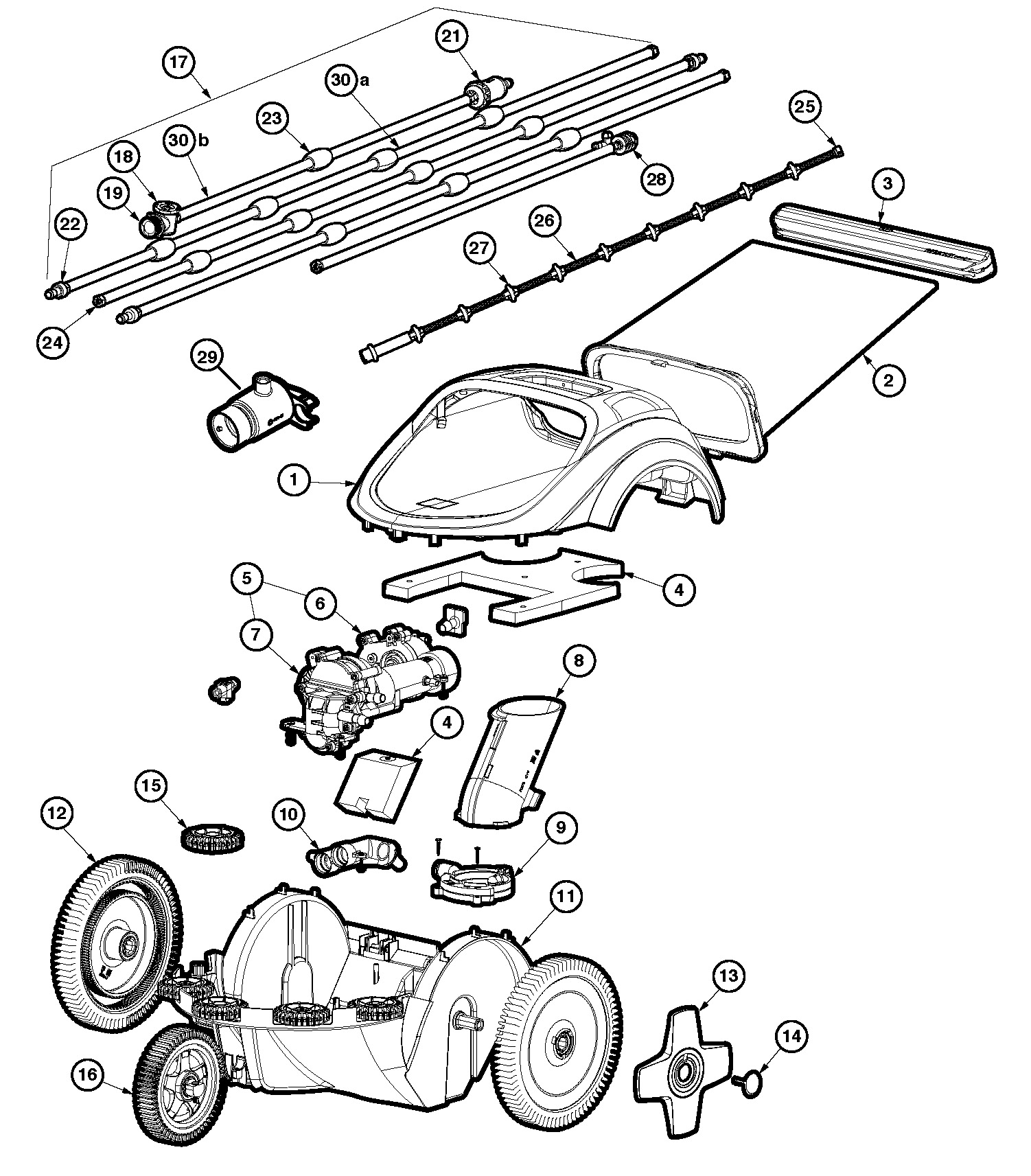

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
TVX7000TA-02
Top Assembly Kit
Product #:
Mfg #: TVX7000TA-02
2
2
TVX5000BA
Bag Kit
Product #:
Mfg #: TVX5000BA
Notes:
Float Included 3
4
5
6
7
7
TVX7500VA
Valve Kit
Product #:
Mfg #: TVX7500VA
8
9
10
11
11
TVX7000LA-02
Lower Assembly Kit
Product #:
Mfg #: TVX7000LA-02
12
13
13
PVXE003PK2-237
Wheel Styling 4 Spoke
Product #:
Mfg #: PVXE003PK2-237
Notes:
2 included in pack 14
14
PVXS0006-237
HAY-201-1116
Product #: HAY-201-1116
Mfg #: PVXS0006-237
Notes:
2 included in pack 15
