AquaStar Pool Products
Variable Speed Smart Pipeline Pool Pump 3HP
Product #:API-10-1012
Mfg. Part #:PLP300S
AquaStar Pool Products PLP300S Variable Speed Smart Pipeline Pool Pump 3HP
AquaStar Pool Products
Variable Speed Smart Pipeline Pool Pump 3HP
Product #:API-10-1012
Mfg. Part #:PLP300S
Description
This Variable Speed Pump is designed to help maintain your pool. It has four programmable speeds from 800 to 3400 RPM. A noise reduction vibration dampening rubber insert is also included.
Documents
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationPool
- Shipping Dimensions27 x 12 x 16 inch
- ColorBlack
- Each Product Weight50 pound
- Frequency Rating (Hz)50/60
- Horsepower3 horse power
- Minimum Sell Quantity1
- Motor Enclosure TypeTotally Enclosed Fan Cooled
- Motor SpeedVariable
- Pallet Quantity16
- PhaseSingle
- Product Weight50 pound
- RPMs Max3400
- RPMs Min800
- Voltage230V
- UPC Code0883612102962
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

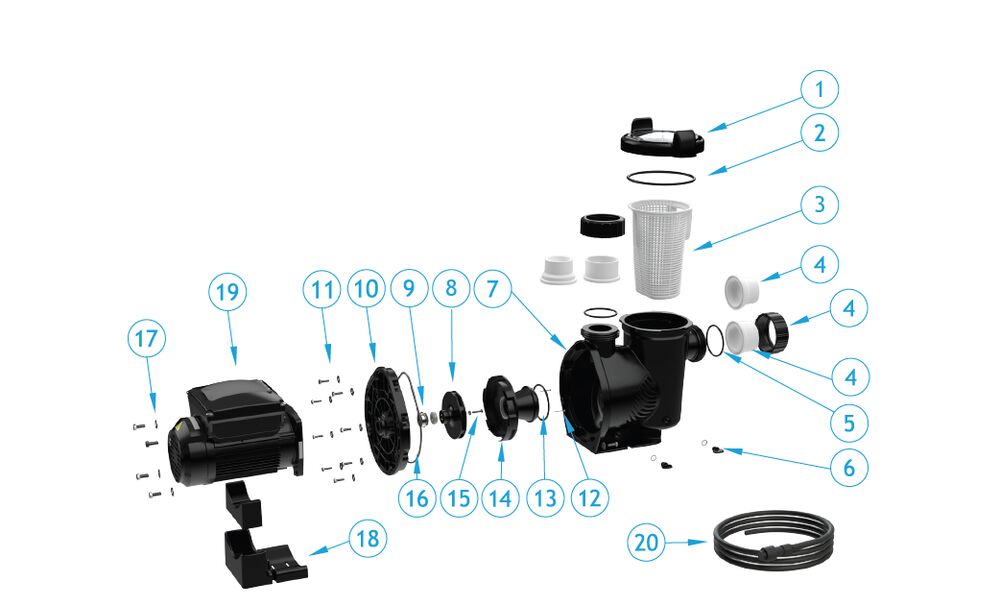

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
AP1101
PUMP LOCKING RING, COVER, AND O-RING
Product #:
Mfg #: AP1101
Notes:
4392
2
O-RING-439
O-RING
Product #:
Mfg #: O-RING-439
Notes:
4393
4
4
AP1102
API-56-1009
Product #: API-56-1009
Mfg #: AP1102
Notes:
2" AND 2.5" SOCKET, UNION NUT, O-RING 338, QTY 2 EACH5
5
AP1111
API-101-1000
Product #: API-101-1000
Mfg #: AP1111
Notes:
#338, QTY 26
6
AP1105
DRAIN PLUG AND O-RING
Product #:
Mfg #: AP1105
Notes:
#014, A EPDM, QTY 27
7
AP1005
PUMP HOUSING
Product #:
Mfg #: AP1005
8
8
AP1115
API-101-1002
Product #: API-101-1002
Mfg #: AP1115
Notes:
3 HP9
9
AP1051
SEAL
Product #:
Mfg #: AP1051
Notes:
CERAMIC10
10
AP1113
SEAL PLATE KIT, W/ O-RING
Product #:
Mfg #: AP1113
Notes:
370, SCREWS AND WASHERS11
11
AP1106
SCREW
Product #:
Mfg #: AP1106
Notes:
1/4"-20 X 7/8" LG, HEX HEAD, 18-8 SS AND WASHER, 3/4" OD X 5/16" ID, USS, 18-8 SS, QTY 812
12
AP1107
SCREW
Product #:
Mfg #: AP1107
Notes:
4-40 X 1-1/8" LG, PAN HEAD PHILL13
13
O-RING-341
DIFFUSER SEAL, O-RING
Product #:
Mfg #: O-RING-341
Notes:
341, EPDM14
14
AP1114
DIFFUSER KIT
Product #:
Mfg #: AP1114
Notes:
W/ O-RING 341 AND SCREWS15
15
AP1108
1/4-20 X 1" LG, LEFT THD, BUTTON SCREW, 316 SS AND WASHER, .5" OD X .23" ID X .1" THK, EPDM RUBBER
Product #:
Mfg #: AP1108
